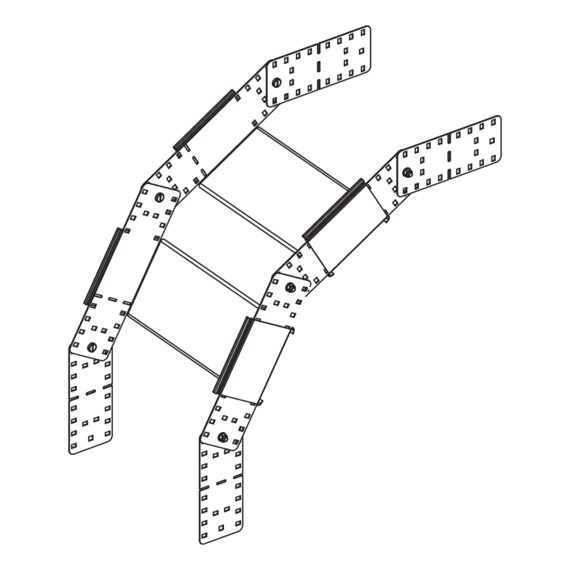

The cable tray vertical bend RVB 110 allows the direction of cable routing to be changed flexibly and vertically. It is inserted into the cable tray along with a REB cable tray end plate and bolted to the bottom and sides. The vertical bend RVB 110 is suitable for cable trays with sides 110 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates flexible vertical change of cable routing direction
Products
steel, continously hot galvanized/Sendzimir process

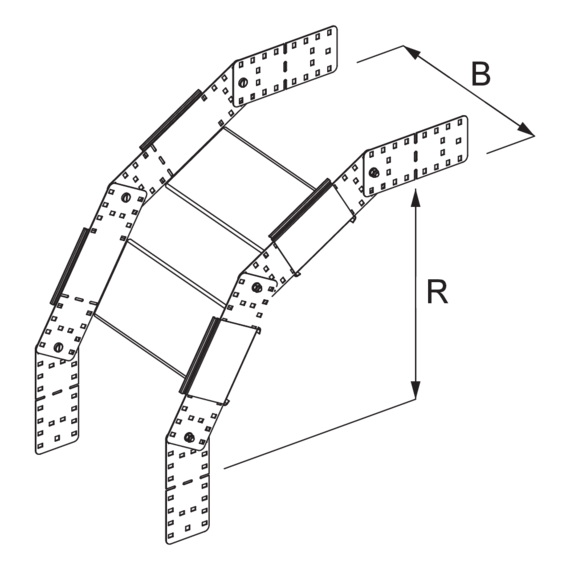

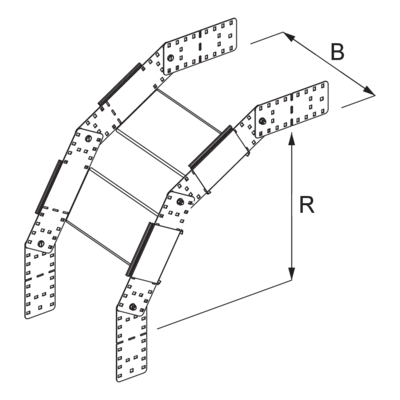

| Products | H height | B width | R radius | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|---|
| RVB 110-10S | 110 mm | 100 mm | 375 mm | rising/falling | var. | 4,388 kg | ||
| RVB 110-20S | 110 mm | 200 mm | 375 mm | rising/falling | var. | 4,738 kg | ||
| RVB 110-30S | 110 mm | 300 mm | 375 mm | rising/falling | var. | 5,088 kg | ||
| RVB 110-40S | 110 mm | 400 mm | 375 mm | rising/falling | var. | 5,436 kg | ||
| RVB 110-50S | 110 mm | 500 mm | 375 mm | rising/falling | var. | 5,786 kg | ||
| RVB 110-60S | 110 mm | 600 mm | 375 mm | rising/falling | var. | 6,134 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | R radius | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|---|
| RVB 110-10F | 110 mm | 100 mm | 375 mm | rising/falling | var. | 4,692 kg | ||
| RVB 110-20F | 110 mm | 200 mm | 375 mm | rising/falling | var. | 5,066 kg | ||
| RVB 110-30F | 110 mm | 300 mm | 375 mm | rising/falling | var. | 5,438 kg | ||
| RVB 110-40F | 110 mm | 400 mm | 375 mm | rising/falling | var. | 5,812 kg | ||
| RVB 110-50F | 110 mm | 500 mm | 375 mm | rising/falling | var. | 6,186 kg | ||
| RVB 110-60F | 110 mm | 600 mm | 375 mm | rising/falling | var. | 6,560 kg |
