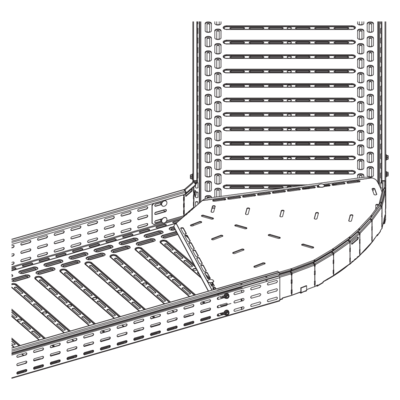

The variable cable tray bend RBV 85 allows the direction of cable routing to be changed horizontally by 0 to 90° and - mounted as a surface-mounted branch - a change in direction from 0° to 45°. They are suitable for cable trays R(G)(S) with sides 85 mm high and have integrated connectors and slots for fastening separating strips or brackets. The edges at the head of the variable cable tray bend are folded over to protect the cable. The variable cable tray bend is packed flat when delivered. To assemble the bend, fold up the inside and outside sections. Take care to align the head correctly. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction from 0 to 90°
Products
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | |
|---|---|---|---|---|---|---|
| RBV 85-10S | 85 mm | 100 mm | var. | 0,437 kg | ||
| RBV 85-20S | 85 mm | 200 mm | var. | 0,732 kg | ||
| RBV 85-30S | 85 mm | 300 mm | var. | 1,450 kg | ||
| RBV 85-40S | 85 mm | 400 mm | var. | 2,080 kg | ||
| RBV 85-50S | 85 mm | 500 mm | var. | 3,503 kg | ||
| RBV 85-60S | 85 mm | 600 mm | var. | 4,663 kg |
