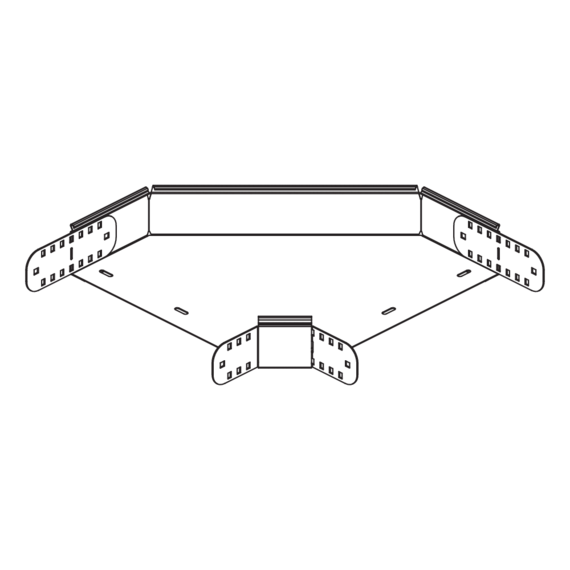

The cable tray bend RB 85 allows the direction of cable routing to be changed horizontally by 90°. They are suitable for cable trays with sides 85 mm high and have integrated side connectors. The bend is inserted into the cable tray and bolted in place using a VB floor connector. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction by 90°.
Products
steel, continously hot galvanized/Sendzimir process

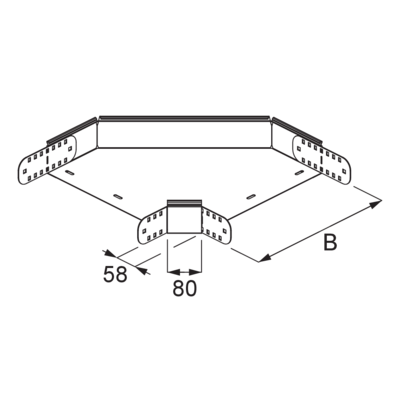

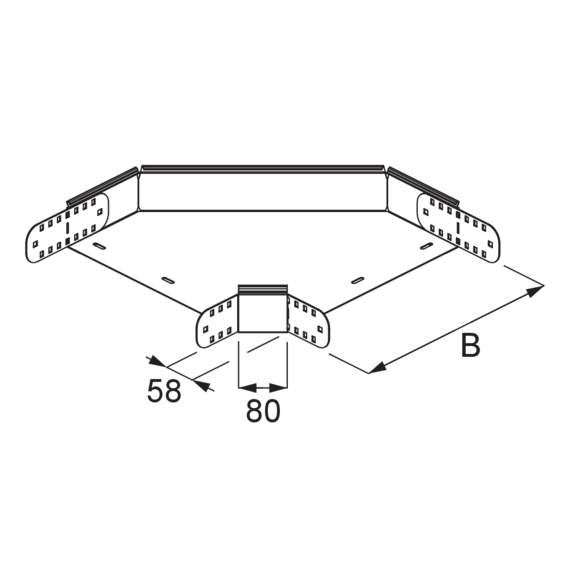

| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|
| RB 85-10S | 85 mm | 100 mm | horizontal | 90° | 1,032 kg | ||
| RB 85-20S | 85 mm | 200 mm | horizontal | 90° | 1,517 kg | ||
| RB 85-30S | 85 mm | 300 mm | horizontal | 90° | 2,276 kg | ||
| RB 85-40S | 85 mm | 400 mm | horizontal | 90° | 3,086 kg | ||
| RB 85-50S | 85 mm | 500 mm | horizontal | 90° | 4,145 kg | ||
| RB 85-60S | 85 mm | 600 mm | horizontal | 90° | 5,192 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|
| RB 85-10F | 85 mm | 100 mm | horizontal | 90° | 1,108 kg | ||
| RB 85-20F | 85 mm | 200 mm | horizontal | 90° | 1,627 kg | ||
| RB 85-30F | 85 mm | 300 mm | horizontal | 90° | 2,439 kg | ||
| RB 85-40F | 85 mm | 400 mm | horizontal | 90° | 3,306 kg | ||
| RB 85-50F | 85 mm | 500 mm | horizontal | 90° | 4,439 kg | ||
| RB 85-60F | 85 mm | 600 mm | horizontal | 90° | 5,560 kg |
