The hexagon wood screw SEH is suitable for connecting wooden structures. It is made of galvanised steel and is available in lengths from 50 to 80 mm and with threads from M8 to M10.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, galvanic zinc plated

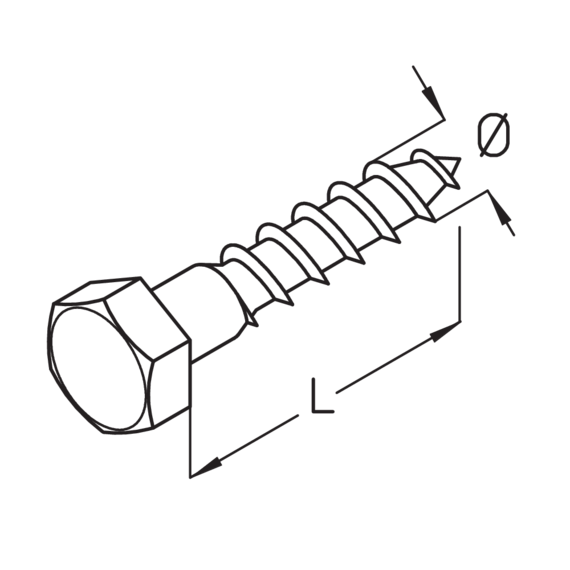

| Products | L length | Ø thread diameter | SW wrench size | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| SEH 8X50 | 50 mm | 8 mm | 13 mm | 0,017 kg | |
| SEH 8X60 | 60 mm | 8 mm | 13 mm | 0,019 kg | |
| SEH 10X50 | 50 mm | 10 mm | 17 mm | 0,030 kg | |
| SEH 10X60 | 60 mm | 10 mm | 17 mm | 0,034 kg | |
| SEH 10X80 | 80 mm | 10 mm | 17 mm | 0,046 kg |
