SH K

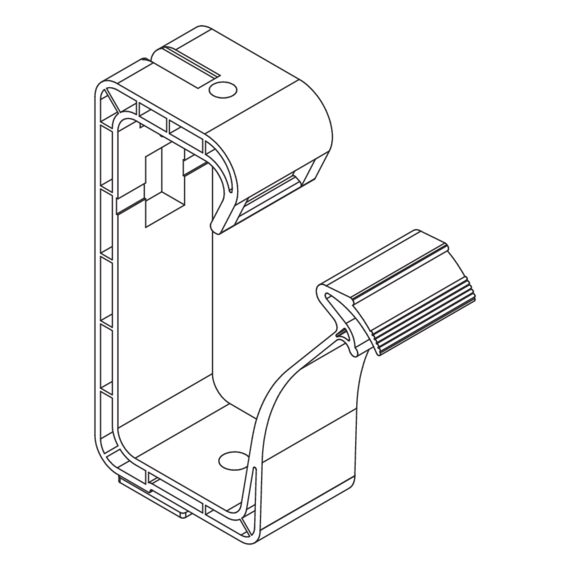

Multiple cable holder, plastic

The multiple cable holder SH K is used for flexible and cost-effective routing of installation cables or smaller cable bundles on walls or ceilings. It is made of halogen-free and silicone-free polyamide and is available with two temperature resistance levels: It is flame-retardant up to 750°C and up to 960°C according to the glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1. The multiple cable holder holds 15 to 30 cables. This information relates to NYM cable (3x1.5 mm²).

Get in touch Download datasheet

Variants

Polyamid

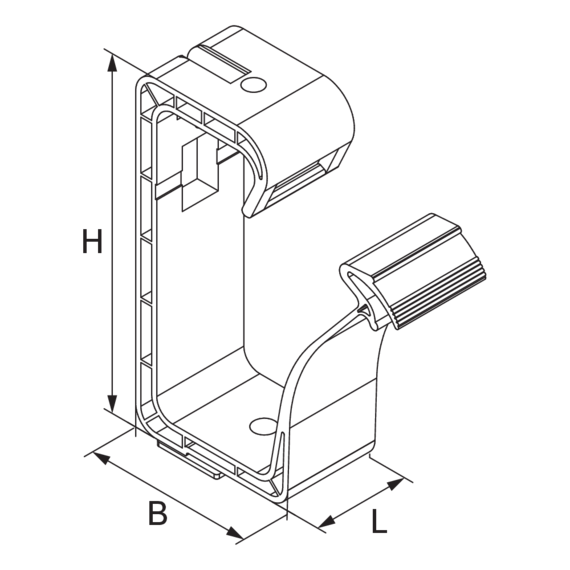

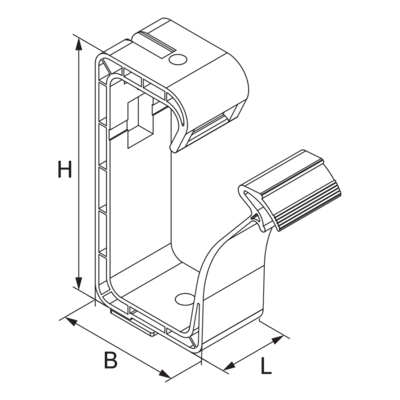

Article

H

Höhe

B

Breite

L

Länge

Farbe

Kabelanzahl

max. Anzahl installierbarer Kabel

Tmax

Prüftemperatur

G

Gewicht je Lagermengeneinheit
  • SH 15 FWK
    Sammelhalter
    Höhe
    94 mm
    Breite
    49 mm
    Länge
    28 mm
    Farbe
    RAL 7030
    max. Anzahl installierbarer Kabel
    15
    Prüftemperatur
    960 °C
    Gewicht je Lagermengeneinheit
    0.030 kg
    More information
  • SH 15 K
    Sammelhalter
    Höhe
    93 mm
    Breite
    48 mm
    Länge
    27 mm
    Farbe
    RAL 7035
    max. Anzahl installierbarer Kabel
    15
    Prüftemperatur
    750 °C
    Gewicht je Lagermengeneinheit
    0.029 kg
    More information
  • SH 30 FWK
    Sammelhalter
    Höhe
    129 mm
    Breite
    60 mm
    Länge
    28 mm
    Farbe
    RAL 7030
    max. Anzahl installierbarer Kabel
    30
    Prüftemperatur
    960 °C
    Gewicht je Lagermengeneinheit
    0.050 kg
    More information
  • SH 30 K
    Sammelhalter
    Höhe
    128 mm
    Breite
    59 mm
    Länge
    27 mm
    Farbe
    RAL 7035
    max. Anzahl installierbarer Kabel
    30
    Prüftemperatur
    750 °C
    Gewicht je Lagermengeneinheit
    0.049 kg
    More information
