LGVHV 100 Cable ladder connector, horizontal, variable, height = 100 mm

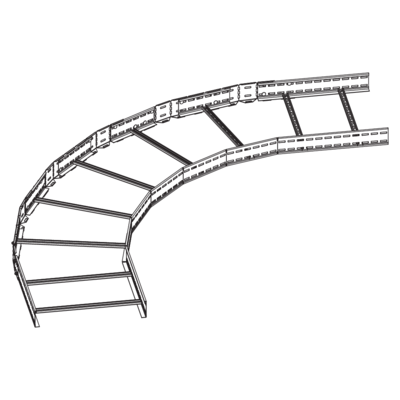

Horizontal changes of direction can also be implemented without formed parts. To do so, LGVHV 100 variable horizontal connectors are pushed onto the rails of the cable ladder previously cut to size according to the installation instructions and bolted in place. The connectors can be adjusted to the required angle. The pre-cut connecting rack is then mounted using the connectors. The variable horizontal connectors can be used to create reductions, bends of up to 90°, branches and offsets. Missing rungs must be added individually to the building situation using KHB 7 profiles. Various lengths are available for this purpose. The connector LGVHV 100 is 100 mm high corresponding to the cable ladder and 900 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Products

steel, continously hot galvanized/Sendzimir process
Products height width length W Weight per storage unit incl. show all inclusive accessoiresbookmark
LGVHV 100S100 mm28 mm900 mm1,250 kg
Stainless steel, according to ASTM 304 / BS 304 S 3
Products height width length W Weight per storage unit incl. show all inclusive accessoiresbookmark
LGVHV 100E100 mm28 mm900 mm1,258 kg
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
Products height width length W Weight per storage unit incl. show all inclusive accessoiresbookmark
LGVHV 100E4100 mm28 mm900 mm1,267 kg
