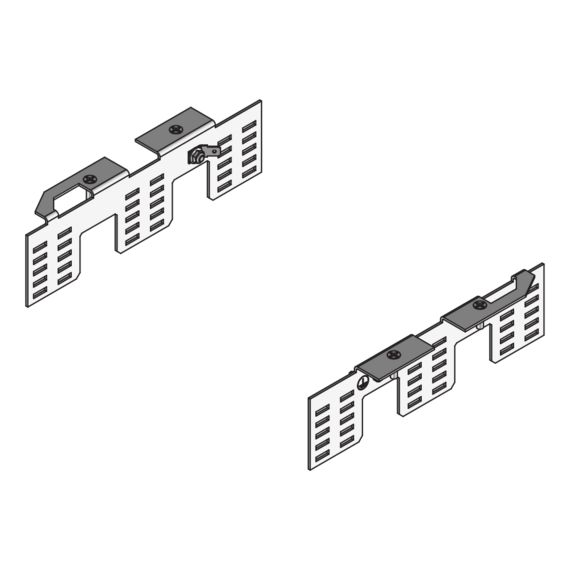

UGEAMR components are snap-in ladder sets for accommodating max. 3 mounting boxes. The sets consist of two individual snap-in ladders that are attached to the frame of the installation units using suitable bolts. They are suitable for mounting on the stainless steel tube cover units for machine cleaning. The products are made from sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They are 190 mm wide, 55 or 84 mm high and have a locking range of 25 or 35 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products

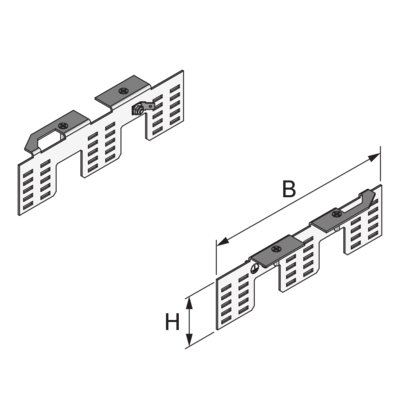

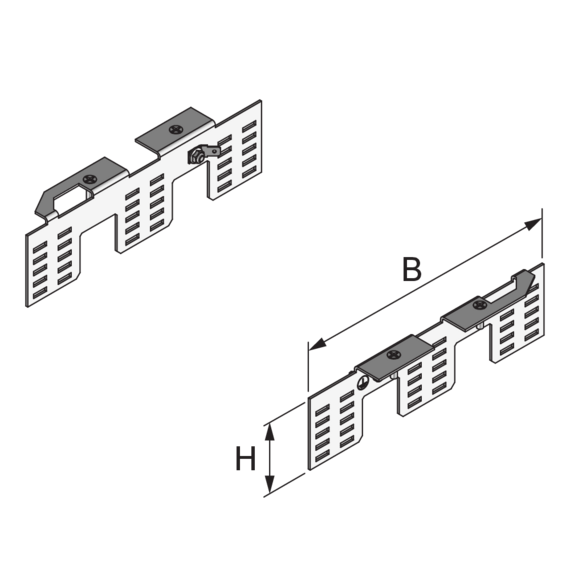

| Products | H height | B width | mounting box maximum number of installable device casings | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| UGEAMR-50S | 54 mm | 190 mm | 3 | 0,224 kg | |
| UGEAMR-80S | 84 mm | 190 mm | 3 | 0,354 kg |
