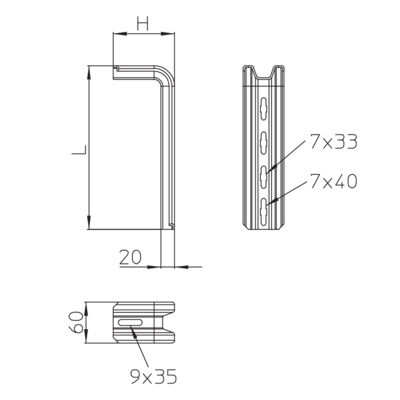

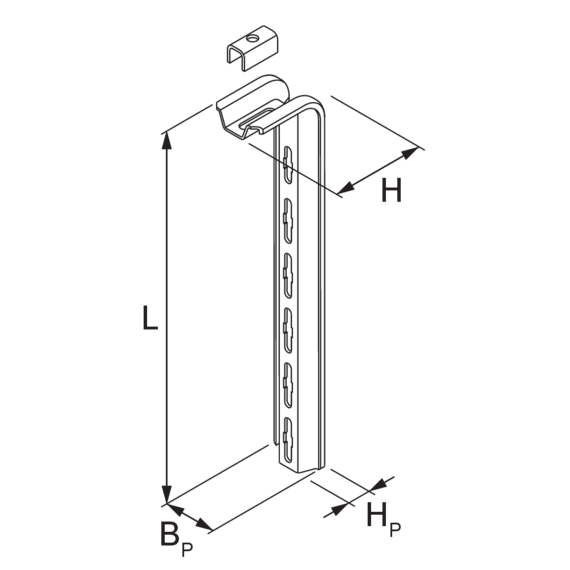

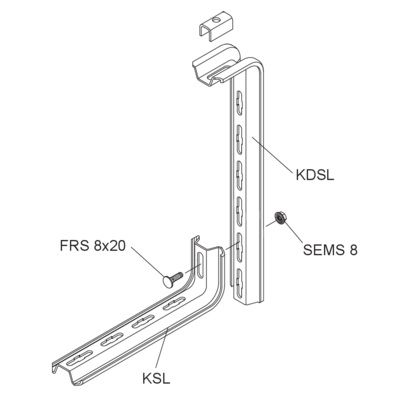

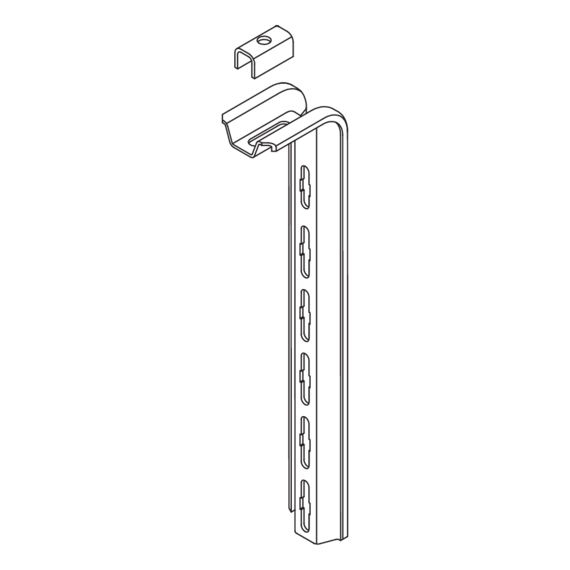

The bracket holder KDSL is designed for light loads in combination with the bracket KSL. It consists of a centrally perforated W/trapezoidal profile 60 x 20 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. The KSL-SP spacer must be installed to prevent deformation of the profile due to the preload force of the fastening element.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | HP profile height | B2 width 2 | BP profile width | L length | t material thickness | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|---|---|
| KDSL 010S | 90 mm | 20 mm | 120 mm | 60 mm | 145 mm | 2,50 mm | 0,390 kg | ||
| KDSL 015S | 90 mm | 20 mm | 170 mm | 60 mm | 195 mm | 2,50 mm | 0,470 kg | ||
| KDSL 020S | 90 mm | 20 mm | 220 mm | 60 mm | 245 mm | 2,50 mm | 0,560 kg | ||
| KDSL 025S | 90 mm | 20 mm | 270 mm | 60 mm | 295 mm | 2,50 mm | 0,640 kg | ||
| KDSL 030S | 90 mm | 20 mm | 320 mm | 60 mm | 345 mm | 2,50 mm | 0,720 kg | ||
| KDSL 040S | 90 mm | 20 mm | 420 mm | 60 mm | 445 mm | 2,50 mm | 0,890 kg | ||
| KDSL 050S | 90 mm | 20 mm | 520 mm | 60 mm | 545 mm | 2,50 mm | 1,060 kg | ||
| KDSL 060S | 90 mm | 20 mm | 620 mm | 60 mm | 645 mm | 2,50 mm | 1,210 kg |
steel, batch/hot-dip galvanized
| Products | H height | HP profile height | B2 width 2 | BP profile width | L length | t material thickness | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|---|---|
| KDSL 010F | 90 mm | 20 mm | 120 mm | 60 mm | 145 mm | 2,50 mm | 0,410 kg | ||
| KDSL 015F | 90 mm | 20 mm | 170 mm | 60 mm | 195 mm | 2,50 mm | 0,500 kg | ||
| KDSL 020F | 90 mm | 20 mm | 220 mm | 60 mm | 245 mm | 2,50 mm | 0,590 kg | ||
| KDSL 025F | 90 mm | 20 mm | 270 mm | 60 mm | 295 mm | 2,50 mm | 0,680 kg | ||
| KDSL 030F | 90 mm | 20 mm | 320 mm | 60 mm | 345 mm | 2,50 mm | 0,760 kg | ||
| KDSL 040F | 90 mm | 20 mm | 420 mm | 60 mm | 445 mm | 2,50 mm | 0,950 kg | ||
| KDSL 050F | 90 mm | 20 mm | 520 mm | 60 mm | 545 mm | 2,50 mm | 1,130 kg | ||
| KDSL 060F | 90 mm | 20 mm | 620 mm | 60 mm | 645 mm | 2,50 mm | 1,290 kg |
