AVA Rail connector, branch

Products
Detail and application images
Accessories
Downloads

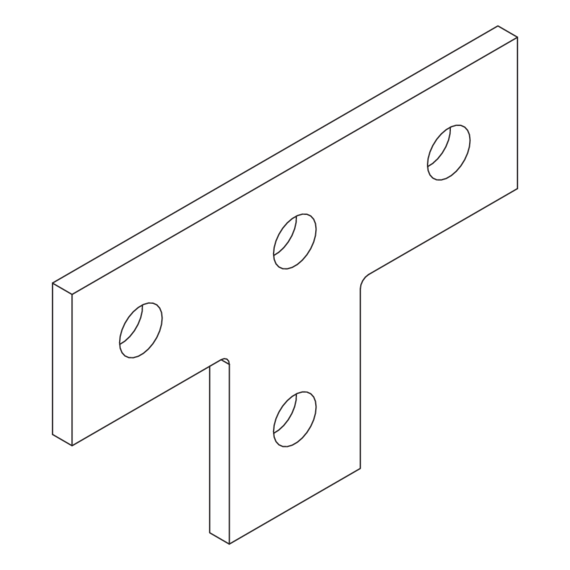

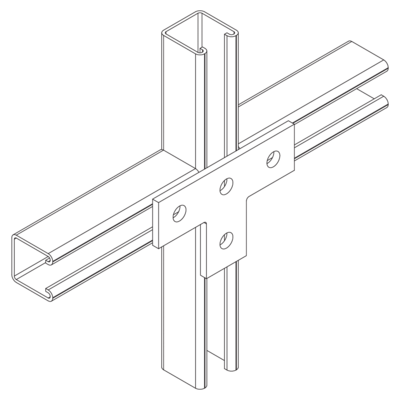

The channel connector branch AVA can be used to connect mounting channels together as crossings. It is made of hot-dip galvanised steel.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Ausschreiben.de
Heinze

Request a callback now

Products

steel, batch/hot-dip galvanized

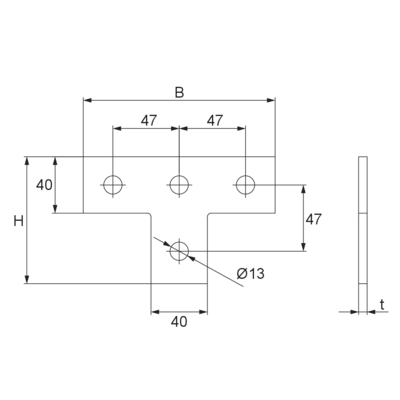

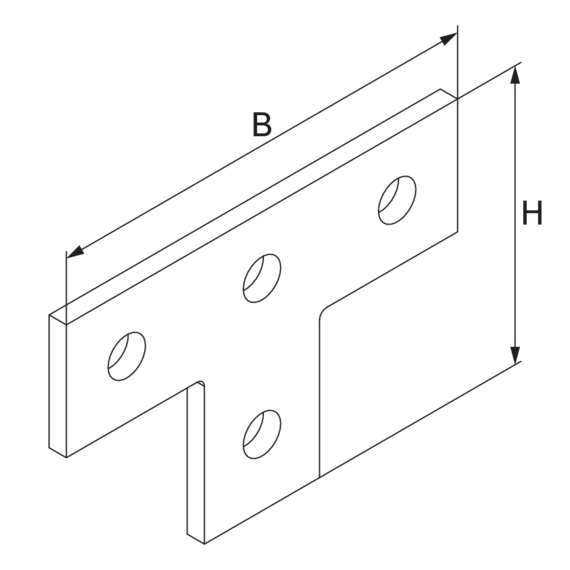

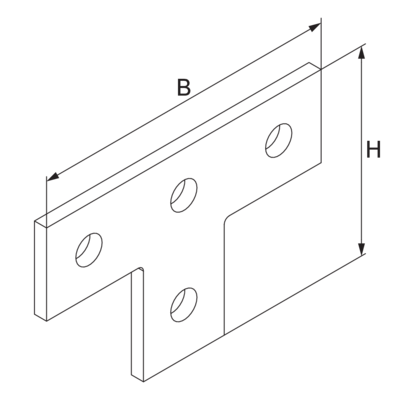

Products	H height	B width	t material thickness	W Weight per storage unit	bookmark
AVA F	90 mm	136 mm	6,00 mm	0,360 kg

Detail and application images

Accessories

SES

Hexagon head bolt, DIN 933

AM 22

Channel nut

AMF 22

Channel nut with spring

Downloads

Support systems - Technical information

Technical information

Support systems Assembling instruction

Assembly instructions
