BKD-RHP

Floor duct cover with anti-slip embossing

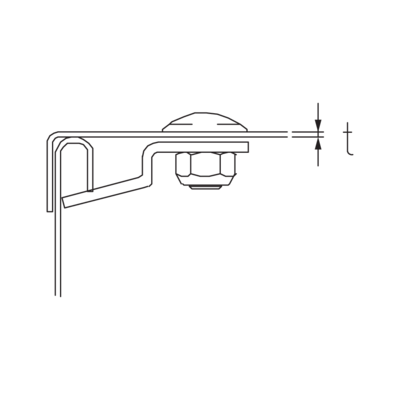

The BKD-RHP floor duct cover is placed on top of the floor duct and protects cables and supply lines from flying sparks and other mechanical influences. It is 100 to 600 mm wide corresponding to the floor duct and 1000, 1500 or 3000 mm long. The floor duct cover is made of sendzimir hot-dip galvanised steel with slip resistance class R11. With a maximum compartment size of 200 mm, we guarantee a tested load capacity of 5.00 kN according to EN 50085-2-2. The covers are placed on top of the floor duct. Pre-embossed knock-out slugs in a grid of 50 mm for individual attachment using DR-BK turning bolts. Alternatively, BKDHK cover clamps can be used.

Load requirements according to: EN 50085-2-2
Slip resistance and slip resistance according to: DIN EN 16165
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

B

width

L

length

t

material thickness

Pmax

maximum load

Slip resistance and slip resistance according to

G

Weight per storage unit

Geeignet für Funktionserhalt

  • BKD-RHP 1-10S
    Floor duct cover, length 1m,
    width
    100 mm
    length
    1000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    2.010 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1-15S
    Floor duct cover, length 1m,
    width
    150 mm
    length
    1000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    2.790 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1-20S
    Floor duct cover, length 1m,
    width
    200 mm
    length
    1000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    3.580 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1-30S
    Floor duct cover, length 1m,
    width
    300 mm
    length
    1000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    5.150 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1-40S
    Floor duct cover, length 1m,
    width
    400 mm
    length
    1000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    6.720 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1-50S
    Floor duct cover, length 1m,
    width
    500 mm
    length
    1000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    8.290 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1-60S
    Floor duct cover, length 1m,
    width
    600 mm
    length
    1000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    9.860 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1.5-10S
    Floor duct cover, length 1.5m,
    width
    100 mm
    length
    1500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    3.010 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1.5-15S
    Floor duct cover, length 1.5m,
    width
    150 mm
    length
    1500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    4.190 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1.5-20S
    Floor duct cover, length 1.5m,
    width
    200 mm
    length
    1500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    5.370 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1.5-30S
    Floor duct cover, length 1.5m,
    width
    300 mm
    length
    1500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    7.720 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1.5-40S
    Floor duct cover, length 1.5m,
    width
    400 mm
    length
    1500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    10.080 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1.5-50S
    Floor duct cover, length 1.5m,
    width
    500 mm
    length
    1500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    12.430 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 1.5-60S
    Floor duct cover, length 1.5m,
    width
    600 mm
    length
    1500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    14.790 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 10S
    Floor duct cover
    width
    100 mm
    length
    3000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    6.030 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 15S
    Floor duct cover
    width
    150 mm
    length
    3000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    8.380 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 20S
    Floor duct cover
    width
    200 mm
    length
    3000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    10.740 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 30S
    Floor duct cover
    width
    300 mm
    length
    3000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    15.450 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 40S
    Floor duct cover
    width
    400 mm
    length
    3000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    20.160 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 50S
    Floor duct cover
    width
    500 mm
    length
    3000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    24.870 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKD-RHP 60S
    Floor duct cover
    width
    600 mm
    length
    3000 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Slip resistance and slip resistance according to
    DIN EN 16165
    Weight per storage unit
    29.580 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Details

  • Load requirements according to: EN 50085-2-2
  • Slip resistance and slip resistance according to: DIN EN 16165
  • Loadable up to 5.00 kN
  • Non-slip embossing R11
  • Easy assembly
