LAB 60 Cable ladder end plate

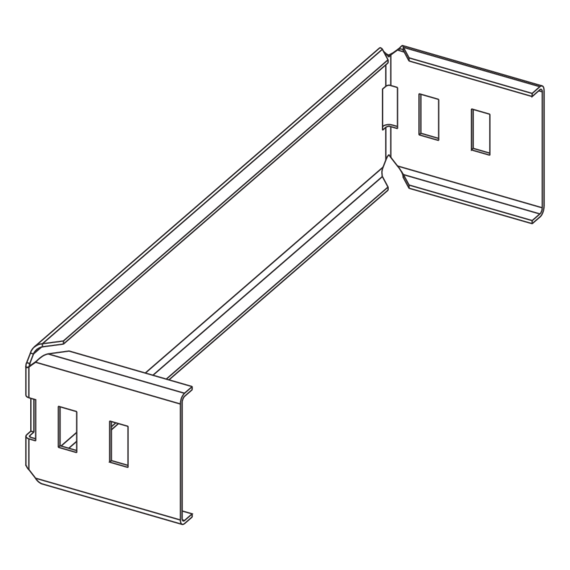

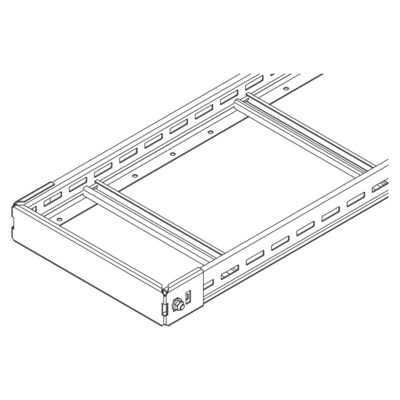

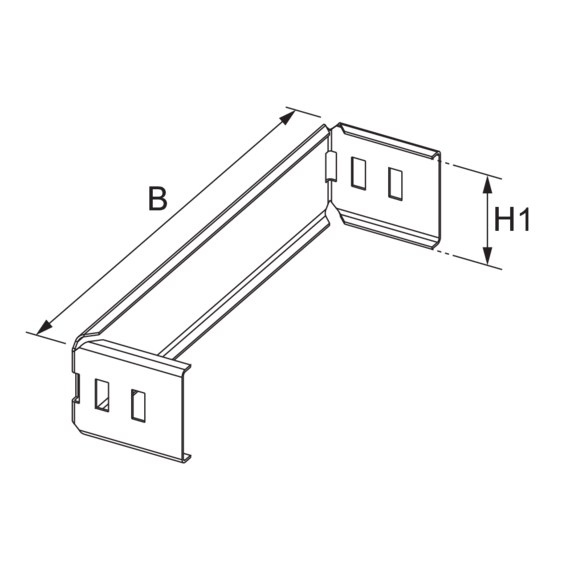

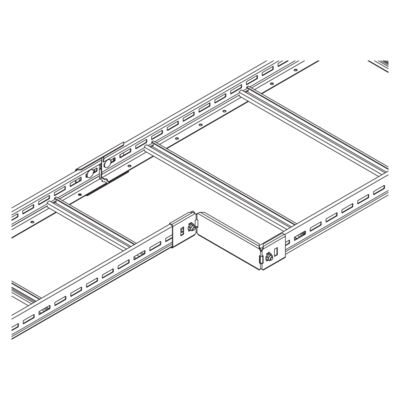

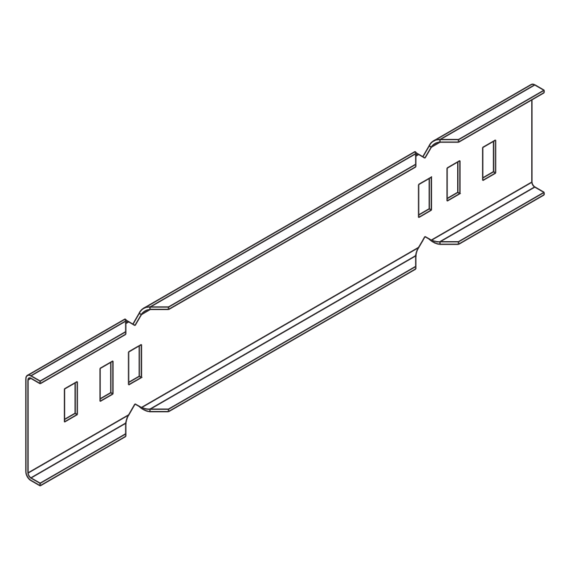

The cable ladder can be closed using the cable ladder end plate LAB 60. For this purpose, the cable ladder end plate is bent into a U-shape, pushed onto the cable ladder and screwed in place. The Z-shaped bent end plate can also be used to reduce the size of the cable ladder in accordance with the installation instructions. The cable ladder end plate LAB 60 has a height of 60 mm corresponding to the ladder and widths of 50 to 600 mm. Various materials and surfaces ensure that the corrosion requirements of a wide range of applications are met.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Request a callback now

Products

steel, continously hot galvanized/Sendzimir process

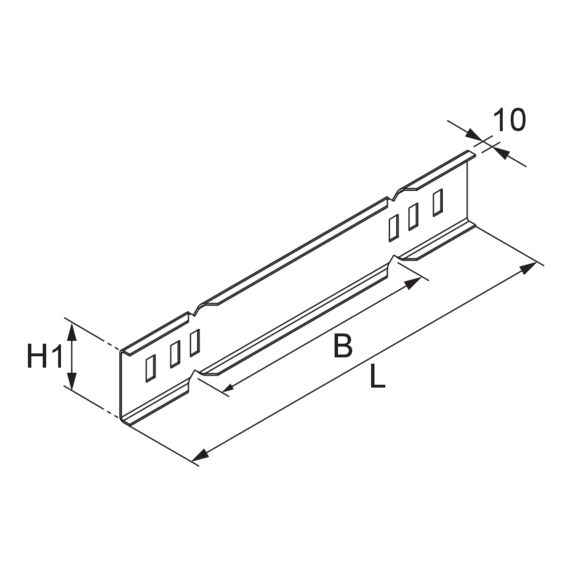

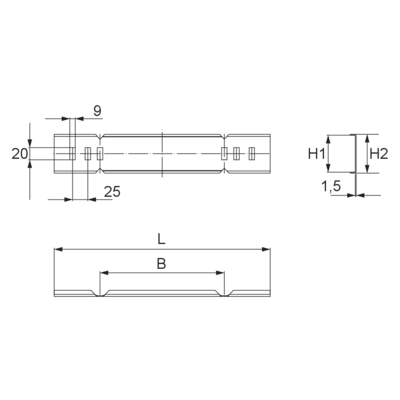

Products	L length	B usable width	H1 height 1	H2 height 2	W Weight per storage unit
LAB 60-05S	203 mm	50 mm	60 mm	64 mm	0,200 kg
LAB 60-10S	253 mm	100 mm	60 mm	64 mm	0,245 kg
LAB 60-15S	303 mm	150 mm	60 mm	64 mm	0,291 kg
LAB 60-20S	353 mm	200 mm	60 mm	64 mm	0,337 kg
LAB 60-30S	453 mm	300 mm	60 mm	64 mm	0,429 kg
LAB 60-40S	553 mm	400 mm	60 mm	64 mm	0,521 kg
LAB 60-50S	653 mm	500 mm	60 mm	64 mm	0,614 kg
LAB 60-60S	753 mm	600 mm	60 mm	64 mm	0,705 kg

steel, batch/hot-dip galvanized

Products	L length	B usable width	H1 height 1	H2 height 2	W Weight per storage unit
LAB 60-05F	203 mm	50 mm	60 mm	64 mm	0,211 kg
LAB 60-10F	253 mm	100 mm	60 mm	64 mm	0,260 kg
LAB 60-15F	303 mm	150 mm	60 mm	64 mm	0,309 kg
LAB 60-20F	353 mm	200 mm	60 mm	64 mm	0,358 kg
LAB 60-30F	453 mm	300 mm	60 mm	64 mm	0,457 kg
LAB 60-40F	553 mm	400 mm	60 mm	64 mm	0,555 kg
LAB 60-50F	653 mm	500 mm	60 mm	64 mm	0,654 kg
LAB 60-60F	753 mm	600 mm	60 mm	64 mm	0,752 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Products	L length	B usable width	H1 height 1	H2 height 2	W Weight per storage unit
LAB 60-05E	203 mm	50 mm	60 mm	64 mm	0,201 kg
LAB 60-15E	303 mm	150 mm	60 mm	64 mm	0,293 kg
LAB 60-20E	353 mm	200 mm	60 mm	64 mm	0,339 kg
LAB 60-30E	453 mm	300 mm	60 mm	64 mm	0,432 kg
LAB 60-40E	553 mm	400 mm	60 mm	64 mm	0,524 kg
LAB 60-50E	653 mm	500 mm	60 mm	64 mm	0,617 kg
LAB 60-60E	753 mm	600 mm	60 mm	64 mm	0,710 kg
