LAB 100 Cable ladder end plate

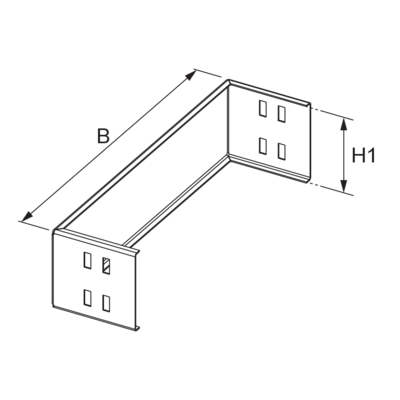

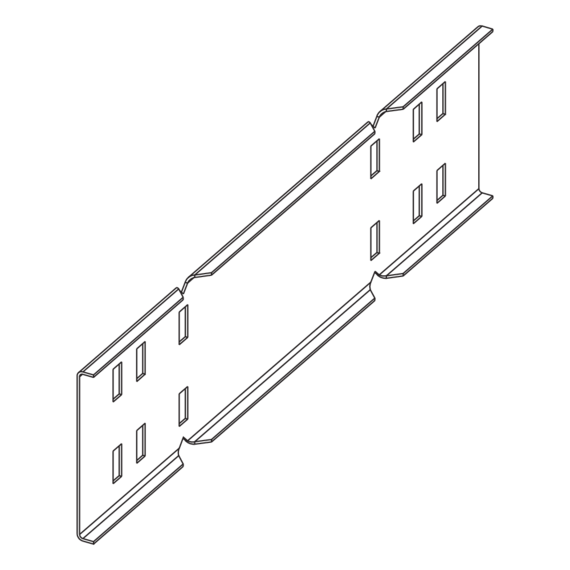

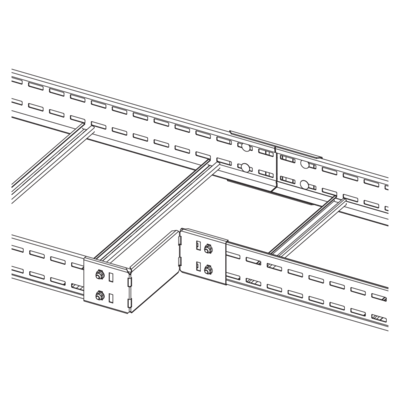

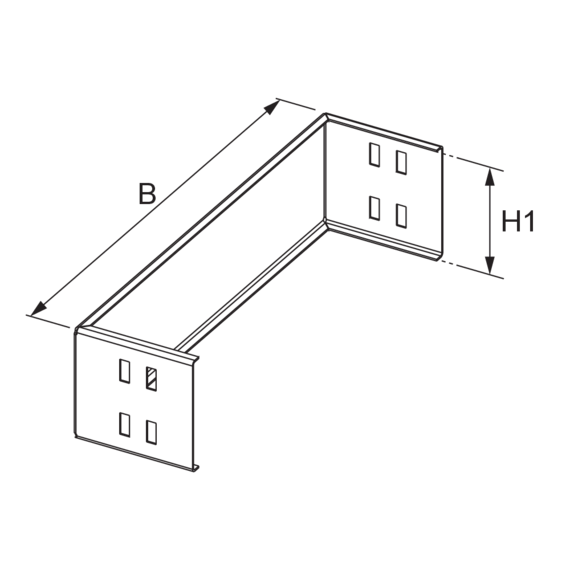

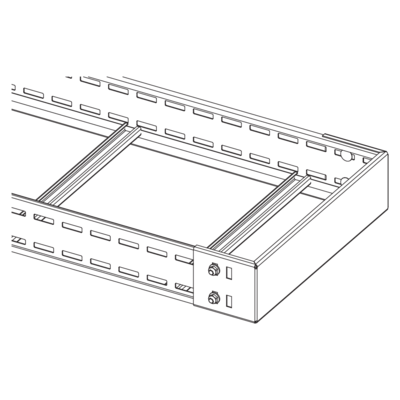

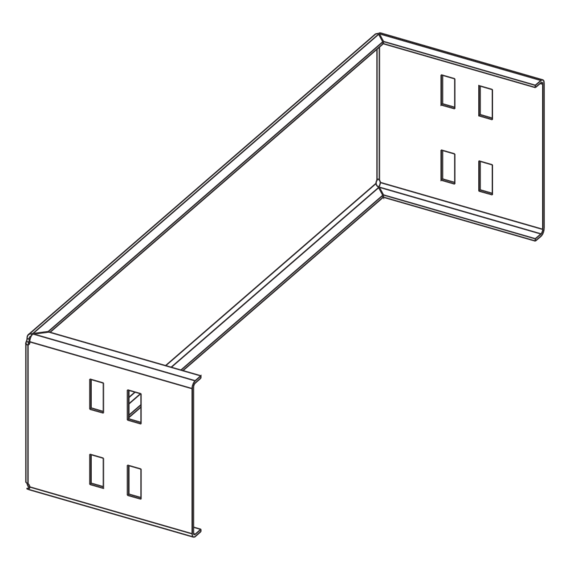

The cable ladder can be closed using the cable ladder end plate LAB 100. For this purpose, the cable ladder end plate is bent into a U-shape, pushed onto the cable ladder and screwed in place. The Z-shaped bent end plate can also be used to reduce the size of the cable ladder in accordance with the installation instructions. The cable ladder end plate LAB 100 has a height of 100 mm corresponding to the ladder and widths of 50 to 600 mm. Various materials and surfaces ensure that the corrosion requirements of a wide range of applications are met.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Request a callback now

Products

steel, continously hot galvanized/Sendzimir process

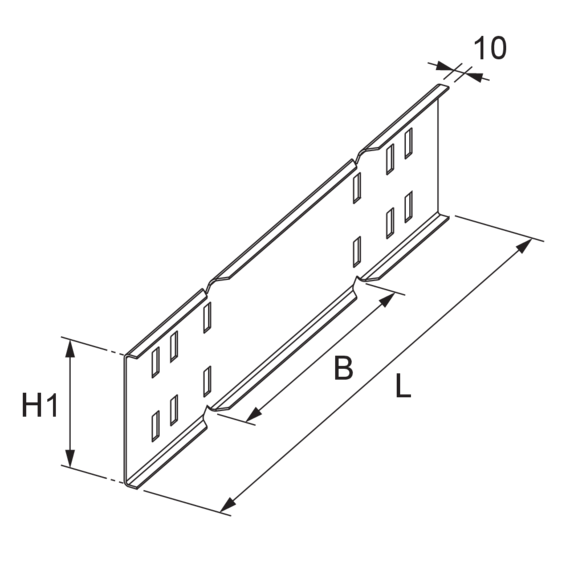

Products	L length	B usable width	H1 height 1	H2 height 2	W Weight per storage unit
LAB 100-05S	273 mm	50 mm	100 mm	104 mm	0,415 kg
LAB 100-10S	323 mm	100 mm	100 mm	104 mm	0,485 kg
LAB 100-15S	373 mm	150 mm	100 mm	104 mm	0,554 kg
LAB 100-20S	423 mm	200 mm	100 mm	104 mm	0,624 kg
LAB 100-30S	523 mm	300 mm	100 mm	104 mm	0,763 kg
LAB 100-40S	623 mm	400 mm	100 mm	104 mm	0,902 kg
LAB 100-50S	723 mm	500 mm	100 mm	104 mm	1,041 kg
LAB 100-60S	823 mm	600 mm	100 mm	104 mm	1,180 kg

steel, batch/hot-dip galvanized

Products	L length	B usable width	H1 height 1	H2 height 2	W Weight per storage unit
LAB 100-05F	273 mm	50 mm	100 mm	104 mm	0,439 kg
LAB 100-10F	323 mm	100 mm	100 mm	104 mm	0,514 kg
LAB 100-15F	373 mm	150 mm	100 mm	104 mm	0,588 kg
LAB 100-20F	423 mm	200 mm	100 mm	104 mm	0,663 kg
LAB 100-30F	523 mm	300 mm	100 mm	104 mm	0,811 kg
LAB 100-40F	623 mm	400 mm	100 mm	104 mm	0,960 kg
LAB 100-50F	723 mm	500 mm	100 mm	104 mm	1,109 kg
LAB 100-60F	823 mm	600 mm	100 mm	104 mm	1,258 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Products	L length	B usable width	H1 height 1	H2 height 2	W Weight per storage unit
LAB 100-05E	273 mm	50 mm	100 mm	104 mm	0,417 kg
LAB 100-10E	323 mm	100 mm	100 mm	104 mm	0,487 kg
LAB 100-15E	373 mm	150 mm	100 mm	104 mm	0,557 kg
LAB 100-20E	423 mm	200 mm	100 mm	104 mm	0,627 kg
LAB 100-30E	523 mm	300 mm	100 mm	104 mm	0,767 kg
LAB 100-40E	623 mm	400 mm	100 mm	104 mm	0,907 kg
LAB 100-50E	723 mm	500 mm	100 mm	104 mm	1,047 kg
LAB 100-60E	823 mm	600 mm	100 mm	104 mm	1,187 kg
