The cable clip LK K is used for flexible and cost-effective routing of installation cables or smaller cable bundles on ceilings. It is 16 mm high making it suitable for applications with low installation heights. It is made of halogen-free and silicone-free polyamide and is available with two temperature resistance levels: It is flame-retardant up to 750°C and up to 960°C according to the glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1. The cable clamp holds 8 to 16 cables. This information relates to NYM cable (3x1.5 mm²).
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
polyamide

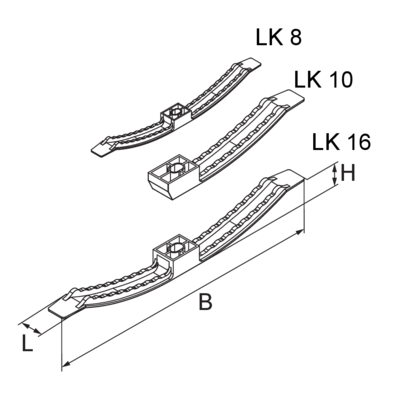

| Products | H height | B width | L length | cables max. number of cables | Tmax Test temperature | W Weight per storage unit | bookmark | |
|---|---|---|---|---|---|---|---|---|
| LK 10 FWK | 15 mm | 126 mm | 19 mm | RAL 7030 | 10 | 960 °C | 0,009 kg | |
| LK 10 K | 15 mm | 126 mm | 19 mm | RAL 7035 | 10 | 750 °C | 0,011 kg | |
| LK 16 FWK | 15 mm | 226 mm | 19 mm | RAL 7030 | 16 | 960 °C | 0,016 kg | |
| LK 16 K | 15 mm | 226 mm | 19 mm | RAL 7035 | 16 | 750 °C | 0,017 kg | |
| LK 8 FWK | 14 mm | 152 mm | 19 mm | RAL 7030 | 8 | 960 °C | 0,011 kg | |
| LK 8 K | 14 mm | 152 mm | 19 mm | RAL 7035 | 8 | 750 °C | 0,012 kg |
