Clamp fastener KLUT is used to secure the position of cable ladders on steel beams. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met. The item is delivered unassembled.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

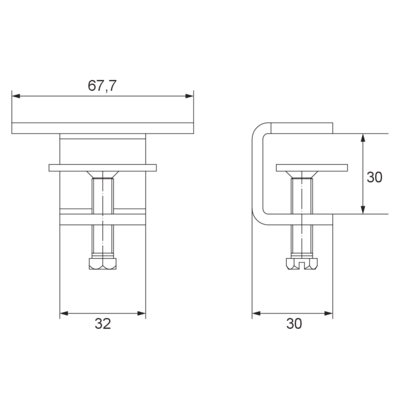

| Products | H height | B width | L length | k clamping range | SW wrench size | M torque | weight | bookmark |
|---|---|---|---|---|---|---|---|---|
| KLUT F | 38 mm | 68 mm | 30 mm | 3 - 25 mm | 10 mm | 4,0 Nm | 0,137 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | H height | B width | L length | k clamping range | SW wrench size | M torque | weight | bookmark |
|---|---|---|---|---|---|---|---|---|
| KLUT E | 38 mm | 68 mm | 30 mm | 3 - 25 mm | 10 mm | 4,0 Nm | 0,132 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | H height | B width | L length | k clamping range | SW wrench size | M torque | weight | bookmark |
|---|---|---|---|---|---|---|---|---|
| KLUT E4 | 38 mm | 68 mm | 30 mm | 3 - 25 mm | 10 mm | 4,0 Nm | 0,133 kg |
