The RG 85 perforated cable trays have sides 85 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Approvals and Certificates
Approvals and Certificates

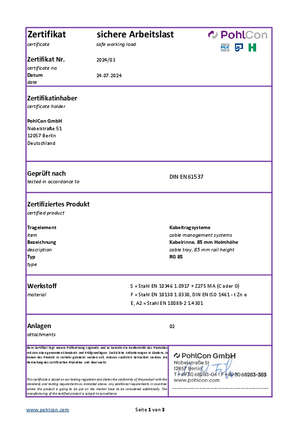

- Electr. conductivity checked according to DIN EN 61537

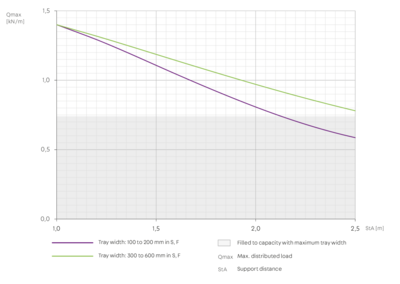

Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B width | L length | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 85-10S | 85 mm | 100 mm | 3000 mm | 0,75 mm | 0,12 kN/m | 82 cm² | 5,010 kg | |
| RG 85-20S | 85 mm | 200 mm | 3000 mm | 0,75 mm | 0,25 kN/m | 167 cm² | 6,500 kg | |
| RG 85-30S | 85 mm | 300 mm | 3000 mm | 0,88 mm | 0,38 kN/m | 252 cm² | 9,600 kg | |
| RG 85-40S | 85 mm | 400 mm | 3000 mm | 0,88 mm | 0,51 kN/m | 337 cm² | 11,600 kg | |
| RG 85-50S | 85 mm | 500 mm | 3000 mm | 1,00 mm | 0,63 kN/m | 422 cm² | 15,250 kg | |
| RG 85-60S | 85 mm | 600 mm | 3000 mm | 1,00 mm | 0,76 kN/m | 507 cm² | 17,600 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 85-10F | 85 mm | 100 mm | 3000 mm | 0,75 mm | 0,12 kN/m | 82 cm² | 6,000 kg | |
| RG 85-20F | 85 mm | 200 mm | 3000 mm | 0,75 mm | 0,25 kN/m | 167 cm² | 7,150 kg | |
| RG 85-30F | 85 mm | 300 mm | 3000 mm | 0,88 mm | 0,38 kN/m | 252 cm² | 10,550 kg | |
| RG 85-40F | 85 mm | 400 mm | 3000 mm | 0,88 mm | 0,51 kN/m | 337 cm² | 12,900 kg | |
| RG 85-50F | 85 mm | 500 mm | 3000 mm | 1,00 mm | 0,63 kN/m | 422 cm² | 16,600 kg | |
| RG 85-60F | 85 mm | 600 mm | 3000 mm | 1,00 mm | 0,76 kN/m | 507 cm² | 18,400 kg |
