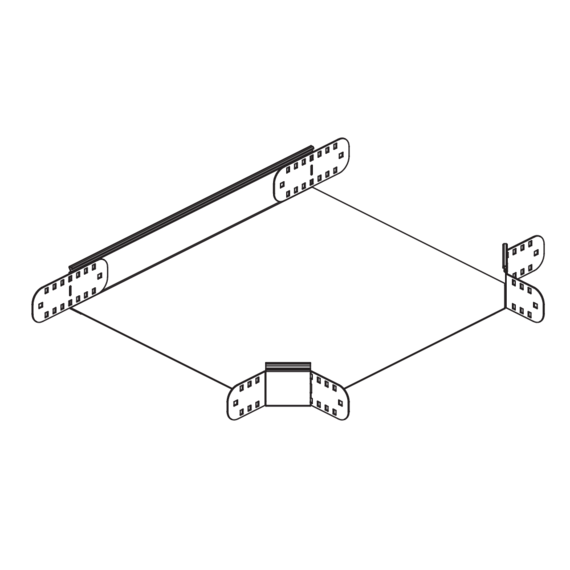

The cable tray branch RA 85 allows the direction of cable routing to be changed horizontally in the form of a branch. It is inserted between two cable trays and enables the connection of another cable tray at right angles. The cable tray branch is suitable for cable trays with sides 85 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction in the form of a branch
Products
steel, continously hot galvanized/Sendzimir process

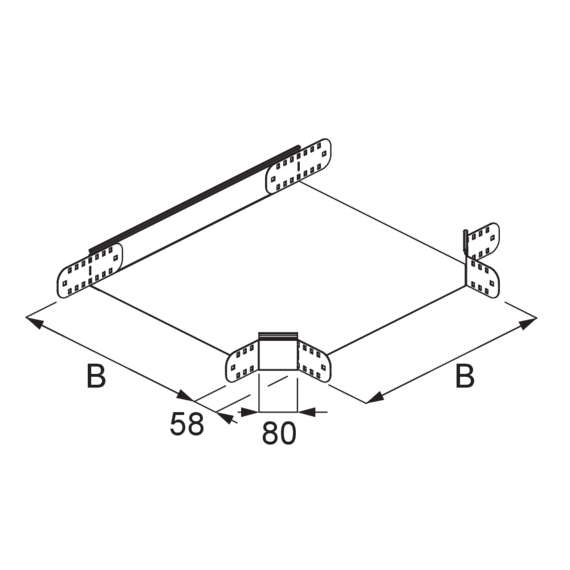

| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| RA 85-10S | 85 mm | 100 mm | 214 mm | 1,653 kg | ||
| RA 85-20S | 85 mm | 200 mm | 314 mm | 2,213 kg | ||
| RA 85-30S | 85 mm | 300 mm | 414 mm | 2,968 kg | ||
| RA 85-40S | 85 mm | 400 mm | 514 mm | 3,920 kg | ||
| RA 85-50S | 85 mm | 500 mm | 614 mm | 5,068 kg | ||
| RA 85-60S | 85 mm | 600 mm | 714 mm | 6,412 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| RA 85-10F | 85 mm | 100 mm | 214 mm | 1,793 kg | ||
| RA 85-20F | 85 mm | 200 mm | 314 mm | 2,374 kg | ||
| RA 85-30F | 85 mm | 300 mm | 414 mm | 3,182 kg | ||
| RA 85-40F | 85 mm | 400 mm | 514 mm | 4,201 kg | ||
| RA 85-50F | 85 mm | 500 mm | 614 mm | 5,429 kg | ||
| RA 85-60F | 85 mm | 600 mm | 714 mm | 6,867 kg |
