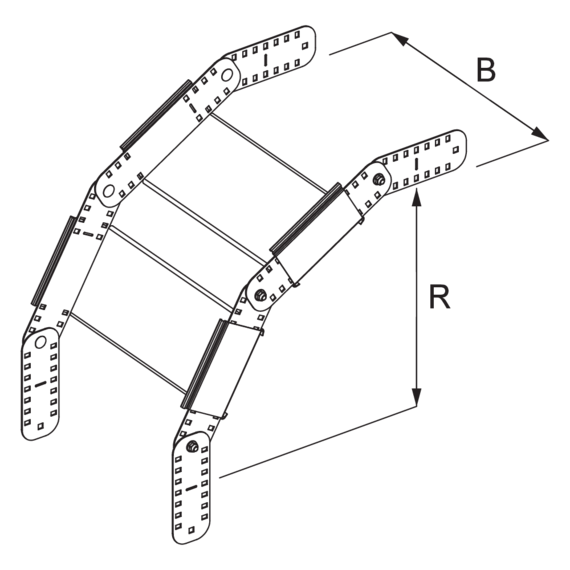

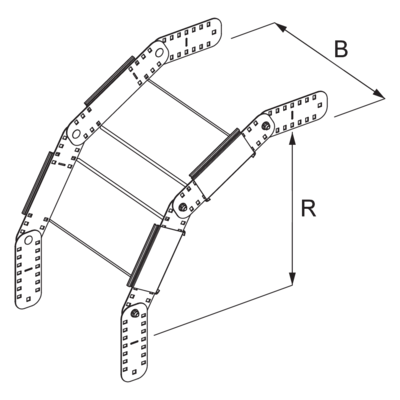

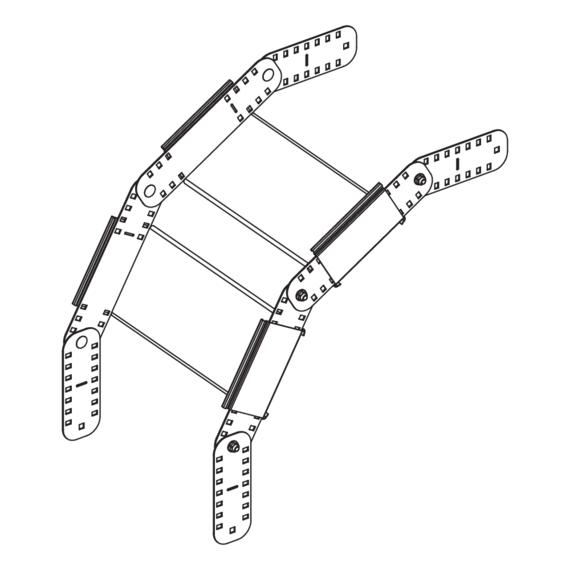

The cable tray vertical bend RVB 85 allows the direction of cable routing to be changed flexibly and vertically. It is inserted into the cable tray along with a REB cable tray end plate and bolted to the bottom and sides. The vertical bend RVB 85 is suitable for cable trays with sides 85 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates flexible vertical change of cable routing direction
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B width | R radius | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|---|
| RVB 85-10S | 85 mm | 100 mm | 330 mm | rising/falling | var. | 3,032 kg | ||
| RVB 85-20S | 85 mm | 200 mm | 330 mm | rising/falling | var. | 3,382 kg | ||
| RVB 85-30S | 85 mm | 300 mm | 330 mm | rising/falling | var. | 3,732 kg | ||
| RVB 85-40S | 85 mm | 400 mm | 330 mm | rising/falling | var. | 4,080 kg | ||
| RVB 85-50S | 85 mm | 500 mm | 330 mm | rising/falling | var. | 4,490 kg | ||
| RVB 85-60S | 85 mm | 600 mm | 330 mm | rising/falling | var. | 4,778 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | R radius | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|---|
| RVB 85-10F | 85 mm | 100 mm | 330 mm | rising/falling | var. | 3,240 kg | ||
| RVB 85-20F | 85 mm | 200 mm | 330 mm | rising/falling | var. | 3,614 kg | ||
| RVB 85-30F | 85 mm | 300 mm | 330 mm | rising/falling | var. | 3,986 kg | ||
| RVB 85-40F | 85 mm | 400 mm | 330 mm | rising/falling | var. | 4,360 kg | ||
| RVB 85-50F | 85 mm | 500 mm | 330 mm | rising/falling | var. | 4,734 kg | ||
| RVB 85-60F | 85 mm | 600 mm | 330 mm | rising/falling | var. | 5,108 kg |
