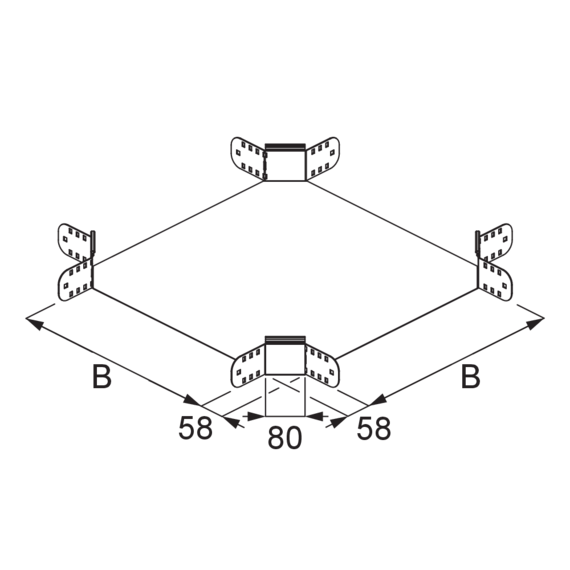

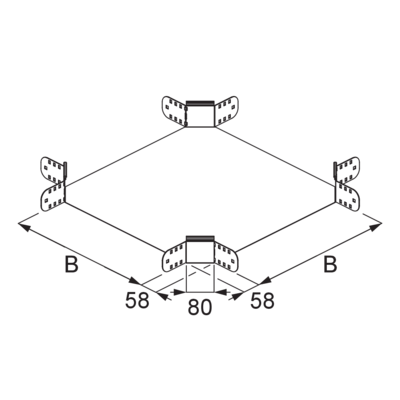

The cable tray crossing RK 85 enables the connection of four cable trays to allow the direction of cable routing to be changed horizontally. It has integrated side connectors and is pushed into the cable tray along with VB floor connectors and bolted in place. The cable tray crossing RK 85 is suitable for cable trays with sides 85 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal change of cable routing in four directions
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RK 85-10S | 85 mm | 100 mm | 1,895 kg | ||
| RK 85-20S | 85 mm | 200 mm | 2,414 kg | ||
| RK 85-30S | 85 mm | 300 mm | 3,128 kg | ||
| RK 85-40S | 85 mm | 400 mm | 4,039 kg | ||
| RK 85-50S | 85 mm | 500 mm | 5,145 kg | ||
| RK 85-60S | 85 mm | 600 mm | 6,448 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RK 85-10F | 85 mm | 100 mm | 2,036 kg | ||
| RK 85-20F | 85 mm | 200 mm | 2,591 kg | ||
| RK 85-30F | 85 mm | 300 mm | 3,355 kg | ||
| RK 85-40F | 85 mm | 400 mm | 4,330 kg | ||
| RK 85-50F | 85 mm | 500 mm | 5,513 kg | ||
| RK 85-60F | 85 mm | 600 mm | 6,908 kg |
