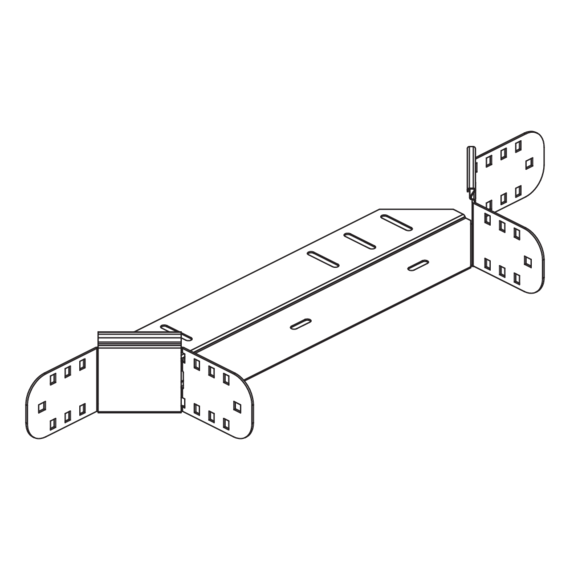

The RAA 85 cable tray attachment branch allows the direction of cable routing to be changed horizontally in the form of a branch. The side rail of the main cable tray is cut out at the point where the connection cable tray will branch off as specified in the installation instructions. The RAA attachment branch is positioned and bolted in place at this point. The VB floor connector and the connection cable tray can then be attached. The RAA 85 cable tray attachment branch is suitable for cable trays with sides 85 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction in the form of a branch
Products

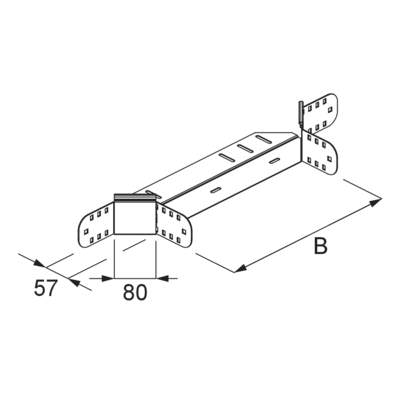

| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RAA 85-10S | 85 mm | 100 mm | 0,981 kg | ||
| RAA 85-20S | 85 mm | 200 mm | 1,112 kg | ||
| RAA 85-30S | 85 mm | 300 mm | 1,245 kg | ||
| RAA 85-40S | 85 mm | 400 mm | 1,381 kg | ||
| RAA 85-50S | 85 mm | 500 mm | 1,508 kg | ||
| RAA 85-60S | 85 mm | 600 mm | 1,644 kg |
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RAA 85-10F | 85 mm | 100 mm | 1,054 kg | ||
| RAA 85-20F | 85 mm | 200 mm | 1,194 kg | ||
| RAA 85-30F | 85 mm | 300 mm | 1,336 kg | ||
| RAA 85-40F | 85 mm | 400 mm | 1,482 kg | ||
| RAA 85-50F | 85 mm | 500 mm | 1,618 kg | ||
| RAA 85-60F | 85 mm | 600 mm | 1,763 kg |
