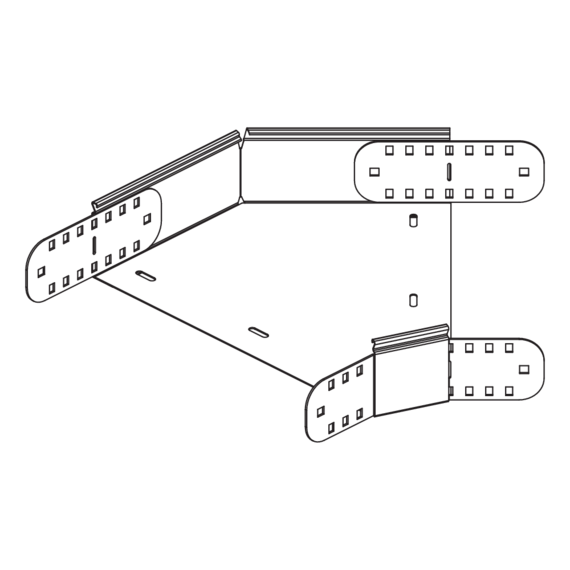

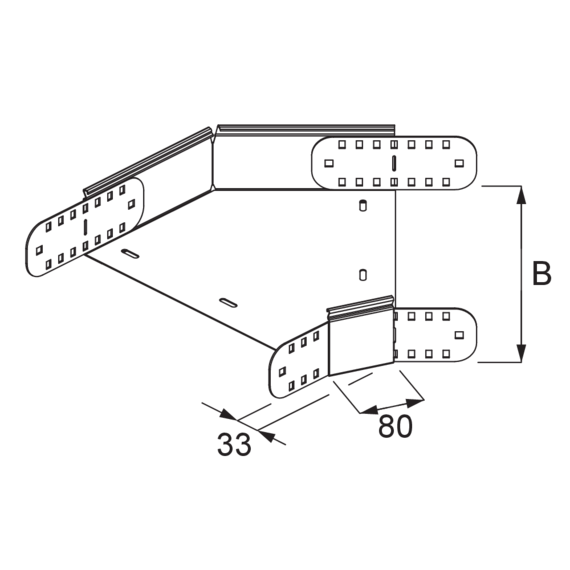

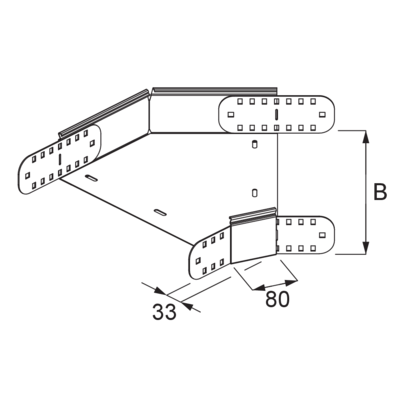

The cable tray bend RB45 85 allows the direction of cable routing to be changed horizontally by 45°. They are suitable for cable trays with sides 85 mm high and have integrated side connectors. The bend is inserted into the cable tray and bolted in place using a VB floor connector. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction by 45°.
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B width | weight | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|
| RB45 85-10S | 85 mm | 100 mm | 45 ° | HORIZONTAL | 0,951 kg | ||
| RB45 85-20S | 85 mm | 200 mm | 45 ° | HORIZONTAL | 1,239 kg | ||
| RB45 85-30S | 85 mm | 300 mm | 45 ° | HORIZONTAL | 1,727 kg | ||
| RB45 85-40S | 85 mm | 400 mm | 45 ° | HORIZONTAL | 2,178 kg | ||
| RB45 85-50S | 85 mm | 500 mm | 45 ° | HORIZONTAL | 2,712 kg | ||
| RB45 85-60S | 85 mm | 600 mm | 45 ° | HORIZONTAL | 3,328 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | weight | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|
| RB45 85-10F | 85 mm | 100 mm | 45 ° | HORIZONTAL | 1,022 kg | ||
| RB45 85-20F | 85 mm | 200 mm | 45 ° | HORIZONTAL | 1,330 kg | ||
| RB45 85-30F | 85 mm | 300 mm | 45 ° | HORIZONTAL | 1,852 kg | ||
| RB45 85-40F | 85 mm | 400 mm | 45 ° | HORIZONTAL | 2,835 kg | ||
| RB45 85-50F | 85 mm | 500 mm | 45 ° | HORIZONTAL | 2,906 kg | ||
| RB45 85-60F | 85 mm | 600 mm | 45 ° | HORIZONTAL | 3,565 kg |
