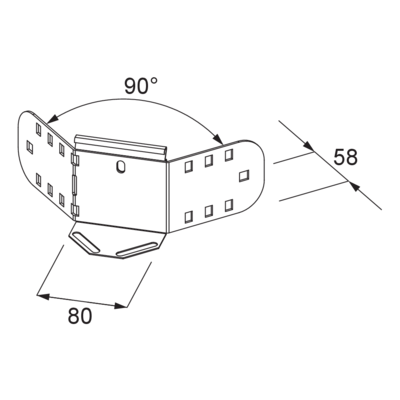

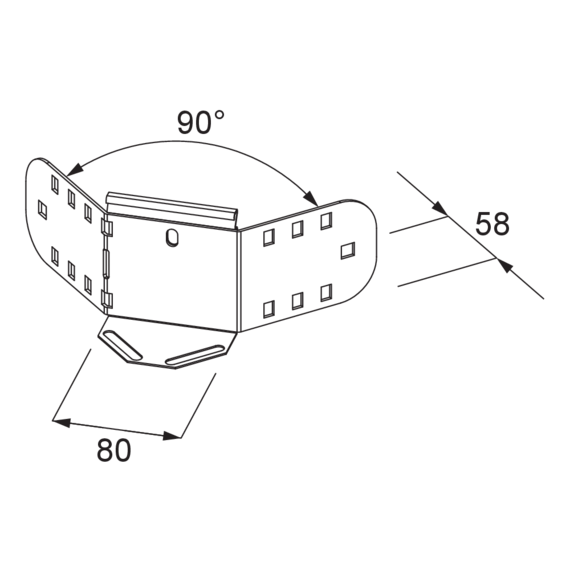

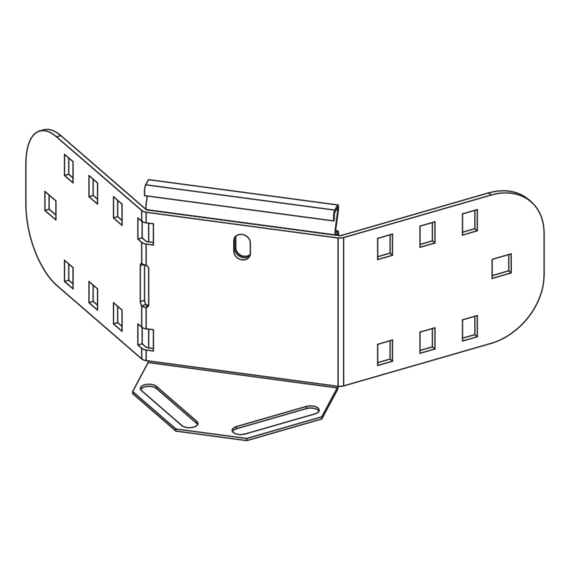

RAE 85 Cable tray attachment corner, height = 85 mm

The cable tray attachment corners RAE 85 allow the direction of cable routing to be changed horizontally in the form of a branch. The side rail of the main cable tray is cut out at the point where the connection cable tray will branch off as specified in the installation instructions. The RAE cable tray attachment corners are pushed into the cable tray and bolted in place. The VB floor connector and the connection cable tray can then be attached. RAE 85 cable tray attachment corners are suitable for cable trays with sides 85 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Tender text

You can find the appropriate tender text for this product on these portals:

• Ausschreiben.de
• Heinze
