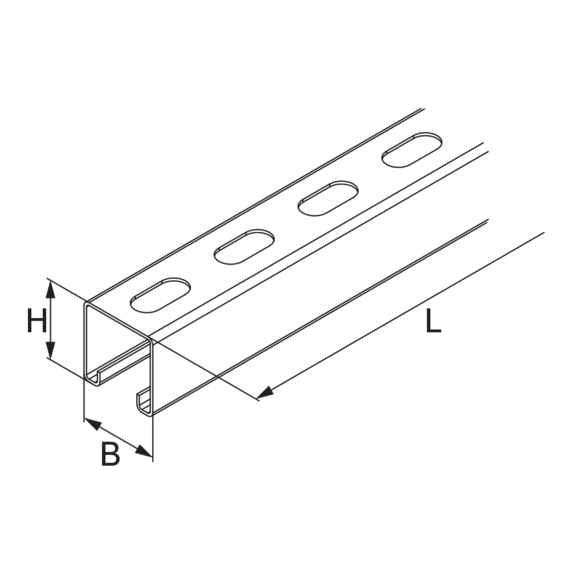

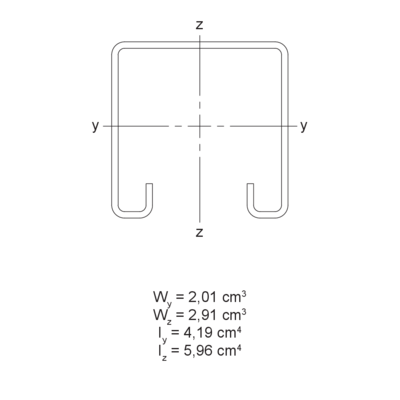

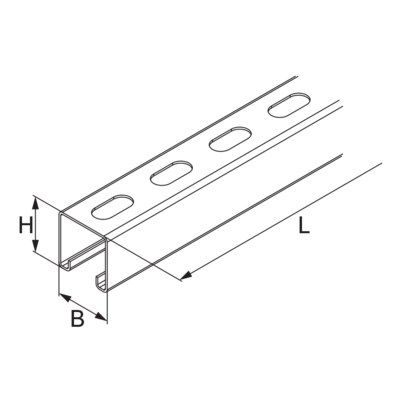

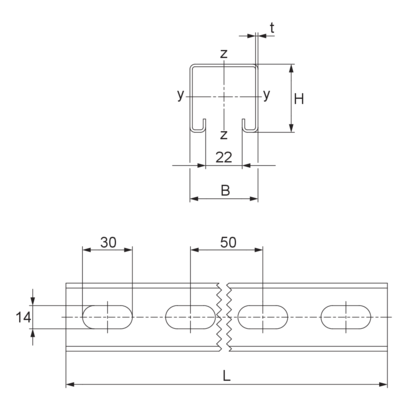

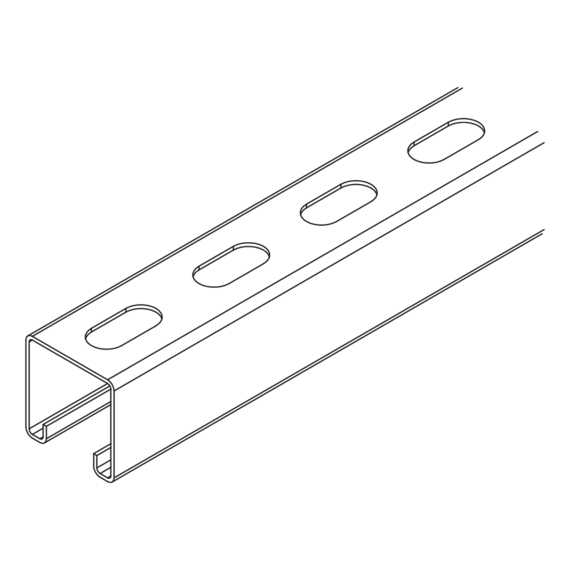

The mounting channel KHAL 41 consists of a C+ profile 41 x 41 mm with continuous perforation and a slot width of 22 mm made from material 1.5 mm thick. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. KHAL 41 also serves as a bracket holder in combination with the BGA 41 head plate and is available in lengths of up to 6000 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process
| Products | L length | BP profile width | HP profile height | t material thickness | t Material strength | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| KHAL 41-30S | 3000 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 4,680 kg | |
| KHAL 41-60S | 6000 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 9,360 kg |
steel, batch/hot-dip galvanized
| Products | L length | BP profile width | HP profile height | t material thickness | t Material strength | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| KHAL 41-05F | 500 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 0,834 kg | |
| KHAL 41-10F | 1000 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 1,669 kg | |
| KHAL 41-15F | 1500 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 2,503 kg | |
| KHAL 41-20F | 2000 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 3,337 kg | |
| KHAL 41-30F | 3000 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 5,006 kg | |
| KHAL 41-36F | 3600 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 6,007 kg | |
| KHAL 41-60F | 6000 mm | 41 mm | 41 mm | 1,50 mm | 1,5 mm | 10,012 kg |
