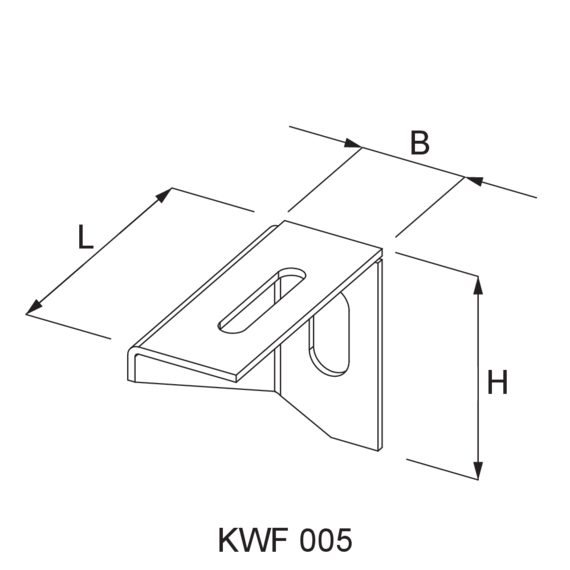

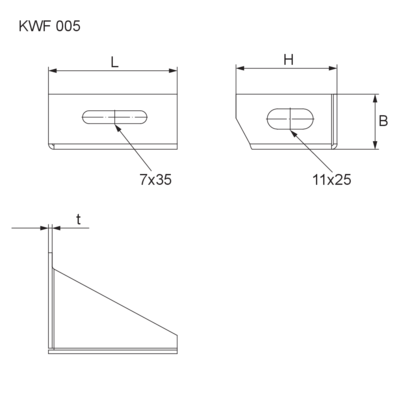

The wall/strut bracket KWF is intended for maximum loads of up to 1.2 kN and is ideal for mesh cable trays and cable trays up to 400 mm wide. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. The bracket KWF is also used as a strut bracket in the U support system. FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads. The stated load values only apply if the product is adequately anchored to the force-absorbing substrate or is attached to suspension struts in accordance with the instructions. The washer is mandatory to achieve the maximum loads.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
| Products | L length | B1 width 1 | B2 width 2 | H height | Pmax maximum load | FD/P dowel-to-anchor load | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|---|---|
| KWF 010S | 120 mm | 100 mm | 120 mm | 80 mm | 1,20 kN | 1,58 | 0,210 kg | ||
| KWF 020S | 220 mm | 200 mm | 220 mm | 80 mm | 1,20 kN | 2,33 | 0,286 kg | ||
| KWF 030S | 320 mm | 300 mm | 320 mm | 80 mm | 1,20 kN | 3,15 | 0,432 kg | ||
| KWF 040S | 420 mm | 400 mm | 420 mm | 80 mm | 1,20 kN | 3,99 | 0,497 kg |
| Products | L length | B1 width 1 | B2 width 2 | H height | Pmax maximum load | FD/P dowel-to-anchor load | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|---|---|
| KWF 010F | 120 mm | 100 mm | 120 mm | 80 mm | 1,20 kN | 1,58 | 0,235 kg | ||
| KWF 020F | 220 mm | 200 mm | 220 mm | 80 mm | 1,20 kN | 2,33 | 0,317 kg | ||
| KWF 030F | 320 mm | 300 mm | 320 mm | 80 mm | 1,20 kN | 3,15 | 0,473 kg | ||
| KWF 040F | 420 mm | 400 mm | 420 mm | 80 mm | 1,20 kN | 3,99 | 0,543 kg |
