KHU 40 Bracket support, 40x30 mm

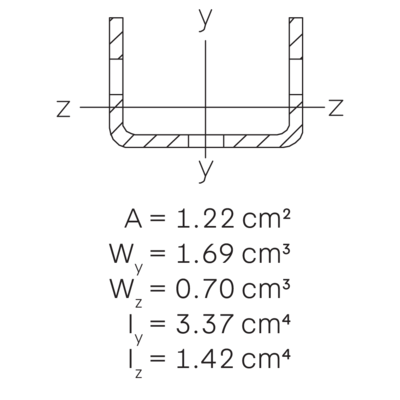

The bracket holder KHU 40 can be easily used as a construction profile due to its continuous perforation on three sides. It consists of a U profile 40 x 30 mm (material thickness 2 mm thick). Using the support piece enables higher load-bearing capacities to be achieved. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Request a callback now

Products

steel, galvanic zinc plated

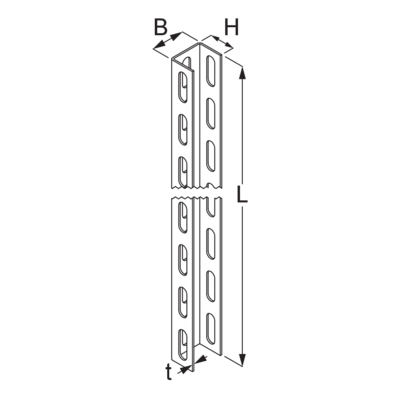

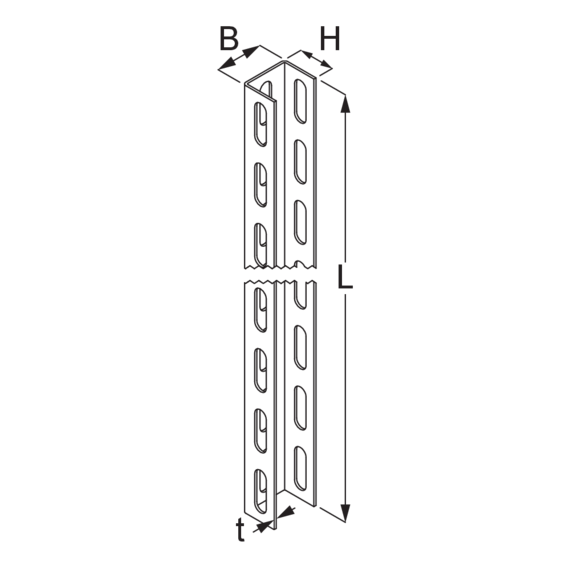

Products	L length	B_P profile width	H_P profile height	t Material strength	W Weight per storage unit	bookmark
KHU 40-30GV	3000 mm	40 mm	30 mm	2 mm	3,370 kg

steel, continously hot galvanized/Sendzimir process

Products	L length	B_P profile width	H_P profile height	t Material strength	W Weight per storage unit
KHU 40-02S	200 mm	40 mm	30 mm	2 mm	0,220 kg
KHU 40-03S	300 mm	40 mm	30 mm	2 mm	0,340 kg
KHU 40-04S	400 mm	40 mm	30 mm	2 mm	0,450 kg
KHU 40-05S	500 mm	40 mm	30 mm	2 mm	0,560 kg
KHU 40-06S	600 mm	40 mm	30 mm	2 mm	0,670 kg
KHU 40-07S	700 mm	40 mm	30 mm	2 mm	0,790 kg
KHU 40-08S	800 mm	40 mm	30 mm	2 mm	0,900 kg
KHU 40-09S	900 mm	40 mm	30 mm	2 mm	1,010 kg
KHU 40-10S	1000 mm	40 mm	30 mm	2 mm	1,120 kg
KHU 40-11S	1100 mm	40 mm	30 mm	2 mm	1,230 kg
KHU 40-12S	1200 mm	40 mm	30 mm	2 mm	1,350 kg
KHU 40-13S	1300 mm	40 mm	30 mm	2 mm	1,550 kg
KHU 40-14S	1400 mm	40 mm	30 mm	2 mm	1,600 kg
KHU 40-15S	1500 mm	40 mm	30 mm	2 mm	1,700 kg
KHU 40-30S	3000 mm	40 mm	30 mm	2 mm	3,400 kg
KHU 40-60S	6000 mm	40 mm	30 mm	2 mm	6,730 kg

steel, batch/hot-dip galvanized

Products	L length	B_P profile width	H_P profile height	t Material strength	W Weight per storage unit
KHU 40-02F	200 mm	40 mm	30 mm	2 mm	0,240 kg
KHU 40-03F	300 mm	40 mm	30 mm	2 mm	0,360 kg
KHU 40-04F	400 mm	40 mm	30 mm	2 mm	0,480 kg
KHU 40-05F	500 mm	40 mm	30 mm	2 mm	0,600 kg
KHU 40-06F	600 mm	40 mm	30 mm	2 mm	0,720 kg
KHU 40-07F	700 mm	40 mm	30 mm	2 mm	0,840 kg
KHU 40-08F	800 mm	40 mm	30 mm	2 mm	0,960 kg
KHU 40-09F	900 mm	40 mm	30 mm	2 mm	1,100 kg
KHU 40-10F	1000 mm	40 mm	30 mm	2 mm	1,200 kg
KHU 40-11F	1100 mm	40 mm	30 mm	2 mm	1,320 kg
KHU 40-12F	1200 mm	40 mm	30 mm	2 mm	1,440 kg
KHU 40-13F	1300 mm	40 mm	30 mm	2 mm	1,600 kg
KHU 40-14F	1400 mm	40 mm	30 mm	2 mm	1,700 kg
KHU 40-15F	1500 mm	40 mm	30 mm	2 mm	1,800 kg
KHU 40-30F	3000 mm	40 mm	30 mm	2 mm	3,600 kg
KHU 40-60F	6000 mm	40 mm	30 mm	2 mm	7,200 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Products	L length	B_P profile width	H_P profile height	t Material strength	W Weight per storage unit
KHU 40-02E	200 mm	40 mm	30 mm	2 mm	0,230 kg
KHU 40-03E	300 mm	40 mm	30 mm	2 mm	0,340 kg
KHU 40-04E	400 mm	40 mm	30 mm	2 mm	0,450 kg
KHU 40-05E	500 mm	40 mm	30 mm	2 mm	0,570 kg
KHU 40-06E	600 mm	40 mm	30 mm	2 mm	0,680 kg
KHU 40-07E	700 mm	40 mm	30 mm	2 mm	0,790 kg
KHU 40-08E	800 mm	40 mm	30 mm	2 mm	0,900 kg
KHU 40-09E	900 mm	40 mm	30 mm	2 mm	1,020 kg
KHU 40-10E	1000 mm	40 mm	30 mm	2 mm	1,130 kg
KHU 40-11E	1100 mm	40 mm	30 mm	2 mm	1,240 kg
KHU 40-12E	1200 mm	40 mm	30 mm	2 mm	1,360 kg
KHU 40-13E	1300 mm	40 mm	30 mm	2 mm	1,470 kg
KHU 40-14E	1400 mm	40 mm	30 mm	2 mm	1,600 kg
KHU 40-15E	1500 mm	40 mm	30 mm	2 mm	1,700 kg
KHU 40-30E	3000 mm	40 mm	30 mm	2 mm	3,400 kg
KHU 40-60E	6000 mm	40 mm	30 mm	2 mm	7,500 kg

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Products	L length	B_P profile width	H_P profile height	t Material strength	W Weight per storage unit
KHU 40-02E4	200 mm	40 mm	30 mm	2 mm	0,230 kg
KHU 40-03E4	300 mm	40 mm	30 mm	2 mm	0,340 kg
KHU 40-04E4	400 mm	40 mm	30 mm	2 mm	0,460 kg
KHU 40-05E4	500 mm	40 mm	30 mm	2 mm	0,570 kg
KHU 40-06E4	600 mm	40 mm	30 mm	2 mm	0,690 kg
KHU 40-07E4	700 mm	40 mm	30 mm	2 mm	0,800 kg
KHU 40-08E4	800 mm	40 mm	30 mm	2 mm	0,920 kg
KHU 40-09E4	900 mm	40 mm	30 mm	2 mm	1,030 kg
KHU 40-10E4	1000 mm	40 mm	30 mm	2 mm	1,140 kg
KHU 40-11E4	1100 mm	40 mm	30 mm	2 mm	1,260 kg
KHU 40-12E4	1200 mm	40 mm	30 mm	2 mm	1,400 kg
KHU 40-13E4	1300 mm	40 mm	30 mm	2 mm	1,500 kg
KHU 40-14E4	1400 mm	40 mm	30 mm	2 mm	1,600 kg
KHU 40-15E4	1500 mm	40 mm	30 mm	2 mm	1,720 kg
KHU 40-30E4	3000 mm	40 mm	30 mm	2 mm	3,430 kg
KHU 40-60E4	6000 mm	40 mm	30 mm	2 mm	7,500 kg

Detail and application images

Accessories

KDU 40

Bracket support, 40x30 mm

BGU 40

Screw-on head plate, KHU 40

KWF

Wall/strut bracket, light

Wall/strut bracket, standard

KHUV 40

Connector, KHU 40

KHUSS 40

Support piece, KHU 40

SU 40

Protection cap, KHU 40

BGUD

Screw-on head plate, ±30°, KHU 40/57/60

BGUDW

Screw-on head plate, 30°-90°, KHU 40/57/60

BL 4

Corner angle
