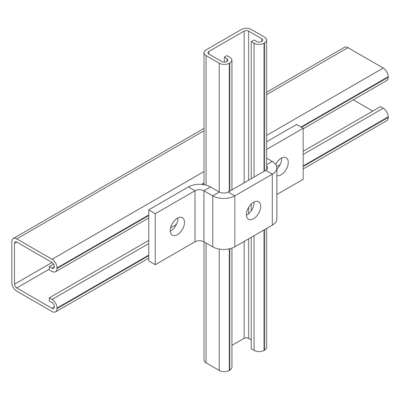

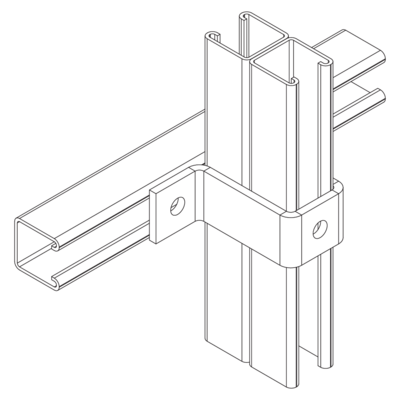

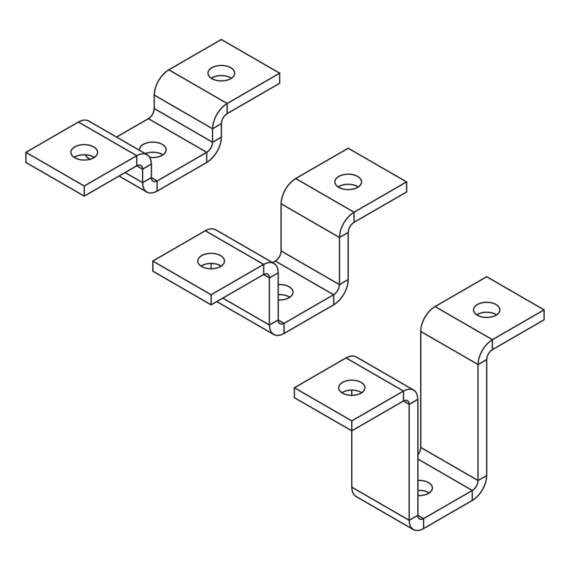

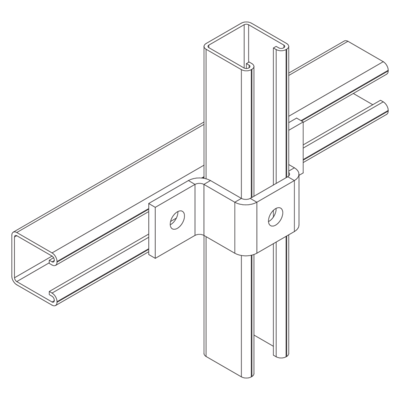

The rail connector bracket AVB connects mounting channels 41 x 41 and 82 x 41 together as crossings. It is made of hot-dip galvanised steel.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | t material thickness | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|

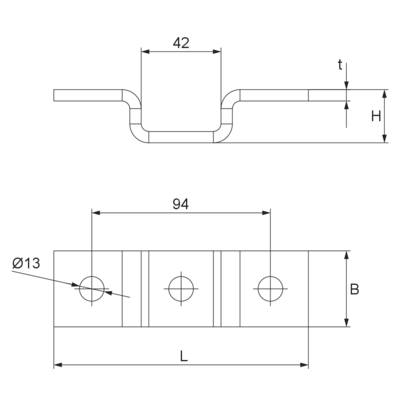

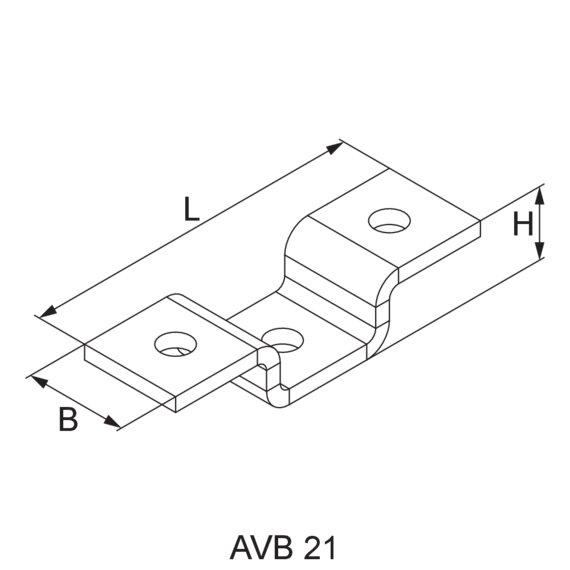

| AVB 21F | 28 mm | 40 mm | 134 mm | 6,00 mm | 0,290 kg | |

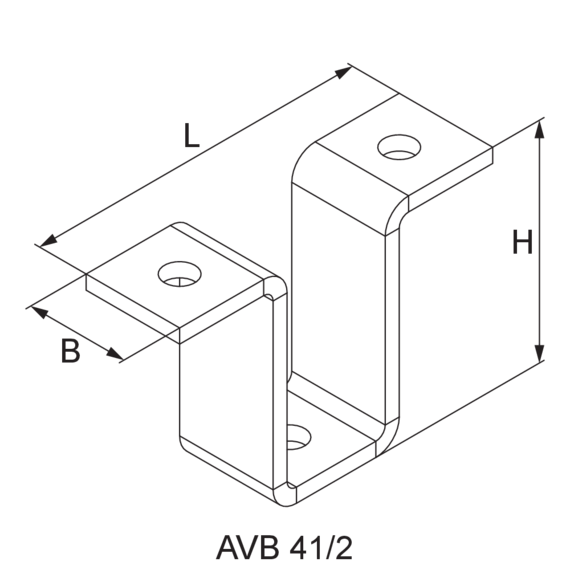

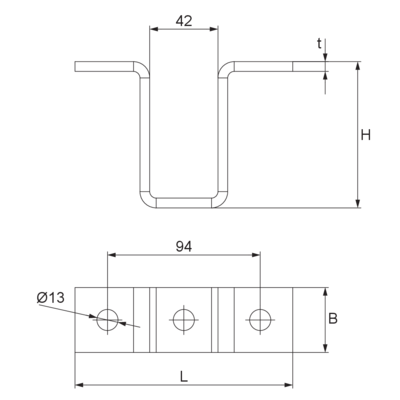

| AVB 41/2F | 90 mm | 40 mm | 134 mm | 6,00 mm | 0,480 kg | |

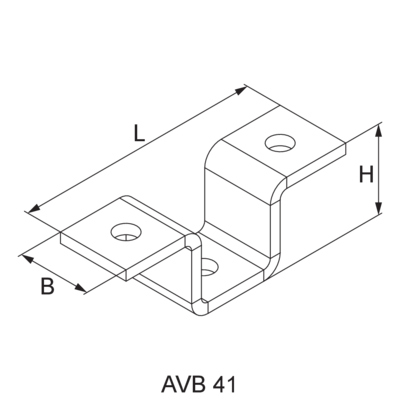

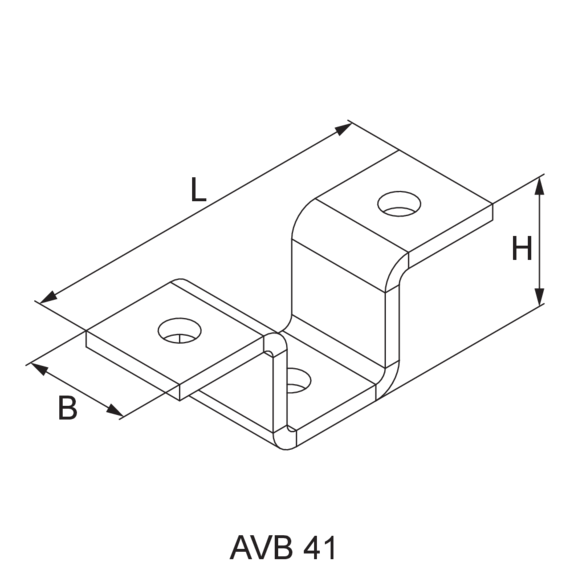

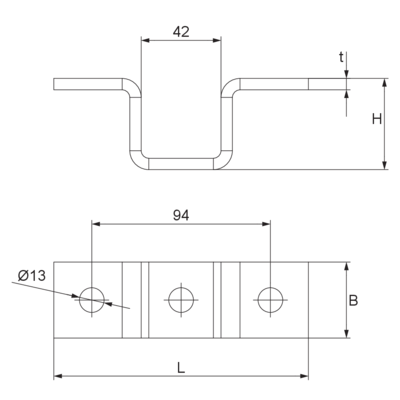

| AVB 41F | 48 mm | 40 mm | 134 mm | 6,00 mm | 0,440 kg |
