KWFL Wall / strut bracket, shallow

The wall/handle bracket KWFL with welded-on back plate is suitable for mesh cable trays, cable trays and cable ladders with track widths of up to 600 mm. The particularly low installation height is suitable for installation situations with limited leeway. Various materials and surfaces ensure that the corrosion requirements of a wide range of applications are met.

The bracket KWFL is also used as a support bracket in the U-Handle system. FD/P: Factor for calculating the dowel load FD with actual bracket load P or sum of actual bracket loads. The load specifications are only valid with sufficient anchoring to the load-bearing substrate or with correct installation on suspended standards.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Request a callback now

Products

steel, galvanic zinc plated

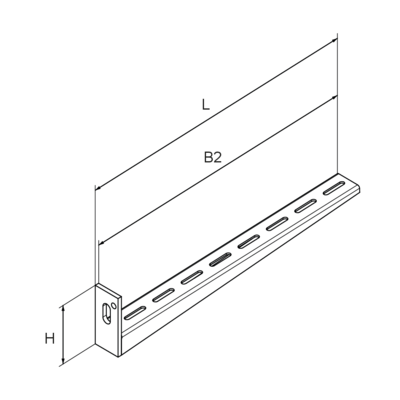

Products	L length	B1 width 1	B2 width 2	H height	P_max maximum load	F_D/P dowel-to-anchor load	W Weight per storage unit
KWFL 010GV	125 mm	100 mm	120 mm	70 mm	2,05 kN	1,93	0,242 kg
KWFL 020GV	225 mm	200 mm	220 mm	70 mm	1,64 kN	2,92	0,369 kg
KWFL 030GV	325 mm	300 mm	320 mm	90 mm	1,55 kN	2,85	0,553 kg
KWFL 040GV	425 mm	400 mm	420 mm	90 mm	1,47 kN	3,55	0,718 kg
KWFL 050GV	527 mm	500 mm	520 mm	110 mm	1,29 kN	3,37	0,988 kg
KWFL 060GV	627 mm	600 mm	620 mm	110 mm	1,05 kN	4,50	1,190 kg

steel, batch/hot-dip galvanized

Products	L length	B1 width 1	B2 width 2	H height	P_max maximum load	F_D/P dowel-to-anchor load	W Weight per storage unit
KWFL 010F	125 mm	100 mm	120 mm	70 mm	2,05 kN	1,93	0,259 kg
KWFL 020F	225 mm	200 mm	220 mm	70 mm	1,64 kN	2,92	0,395 kg
KWFL 030F	325 mm	300 mm	320 mm	90 mm	1,55 kN	2,85	0,592 kg
KWFL 040F	425 mm	400 mm	420 mm	90 mm	1,47 kN	3,55	0,768 kg
KWFL 050F	527 mm	500 mm	520 mm	110 mm	1,29 kN	3,37	1,057 kg
KWFL 060F	627 mm	600 mm	620 mm	110 mm	1,05 kN	4,50	1,273 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Products	L length	B1 width 1	B2 width 2	H height	P_max maximum load	F_D/P dowel-to-anchor load	W Weight per storage unit
KWFL 010E	125 mm	100 mm	120 mm	70 mm	2,05 kN	1,93	0,246 kg
KWFL 020E	225 mm	200 mm	220 mm	70 mm	1,64 kN	2,92	0,375 kg
KWFL 030E	325 mm	300 mm	320 mm	90 mm	1,55 kN	2,85	0,559 kg
KWFL 040E	425 mm	400 mm	420 mm	90 mm	1,47 kN	3,55	0,726 kg
KWFL 050E	527 mm	500 mm	520 mm	110 mm	1,29 kN	3,37	1,015 kg
KWFL 060E	627 mm	600 mm	620 mm	110 mm	1,05 kN	4,50	1,219 kg

Detail and application images

Hover to zoom

Downloads

Support systems - Technical information

Technical information

Support systems Assembling instruction

Assembly instructions

Price list Building extension 2025

Valid from February 1st, 2025
