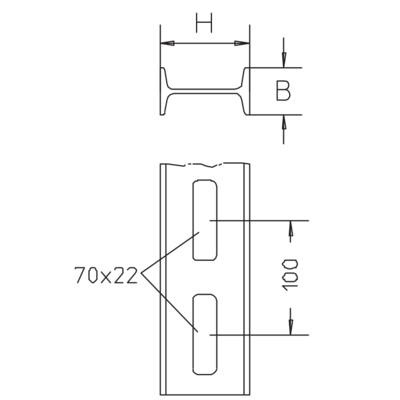

The bracket holder KHI with welded-on top plate (material thickness t) consists of an I profile 80 x 42 mm with continuous slots in the rail. Various surfaces ensure that the corrosion requirements of a wide variety of applications are met. It is fixed to the ceiling using head plate BGI, BGIQ or BGID and optionally to the wall using angle bracket BL.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

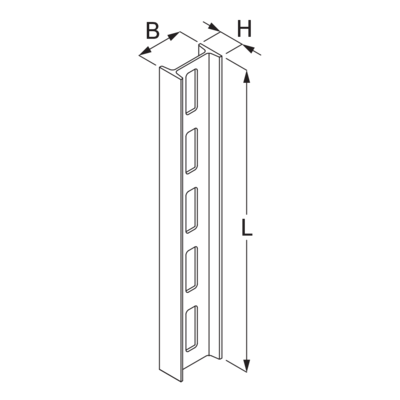

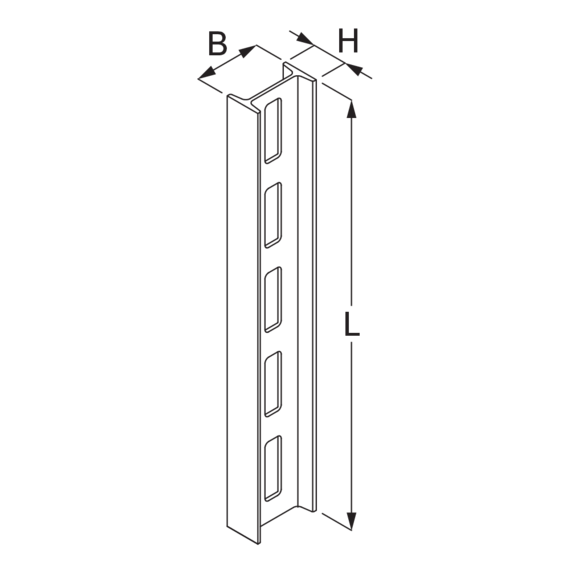

| Products | H height | B width | L length | HP profile height | BP profile width | weight | bookmark |
|---|---|---|---|---|---|---|---|
| KHI 02F | 42 mm | 80 mm | 200 mm | 42 mm | 80 mm | 1,120 kg | |
| KHI 03F | 42 mm | 80 mm | 300 mm | 42 mm | 80 mm | 1,680 kg | |
| KHI 04F | 42 mm | 80 mm | 400 mm | 42 mm | 80 mm | 2,240 kg | |
| KHI 05F | 42 mm | 80 mm | 500 mm | 42 mm | 80 mm | 2,800 kg | |
| KHI 06F | 42 mm | 80 mm | 600 mm | 42 mm | 80 mm | 3,360 kg | |
| KHI 07F | 42 mm | 80 mm | 700 mm | 42 mm | 80 mm | 3,920 kg | |
| KHI 08F | 42 mm | 80 mm | 800 mm | 42 mm | 80 mm | 4,480 kg | |
| KHI 09F | 42 mm | 80 mm | 900 mm | 42 mm | 80 mm | 5,040 kg | |
| KHI 10F | 42 mm | 80 mm | 1000 mm | 42 mm | 80 mm | 5,600 kg | |
| KHI 11F | 42 mm | 80 mm | 1100 mm | 42 mm | 80 mm | 6,160 kg | |
| KHI 12F | 42 mm | 80 mm | 1200 mm | 42 mm | 80 mm | 6,720 kg | |
| KHI 13F | 42 mm | 80 mm | 1300 mm | 42 mm | 80 mm | 7,280 kg | |
| KHI 14F | 42 mm | 80 mm | 1400 mm | 42 mm | 80 mm | 7,840 kg | |
| KHI 15F | 42 mm | 80 mm | 1500 mm | 42 mm | 80 mm | 8,400 kg | |
| KHI 16F | 42 mm | 80 mm | 1600 mm | 42 mm | 80 mm | 8,960 kg | |
| KHI 17F | 42 mm | 80 mm | 1700 mm | 42 mm | 80 mm | 9,520 kg | |
| KHI 18F | 42 mm | 80 mm | 1800 mm | 42 mm | 80 mm | 10,080 kg | |
| KHI 19F | 42 mm | 80 mm | 1900 mm | 42 mm | 80 mm | 10,640 kg | |
| KHI 20F | 42 mm | 80 mm | 2000 mm | 42 mm | 80 mm | 11,200 kg | |
| KHI 21F | 42 mm | 80 mm | 2100 mm | 42 mm | 80 mm | 11,760 kg | |
| KHI 22F | 42 mm | 80 mm | 2200 mm | 42 mm | 80 mm | 12,320 kg | |
| KHI 23F | 42 mm | 80 mm | 2300 mm | 42 mm | 80 mm | 12,880 kg | |
| KHI 24F | 42 mm | 80 mm | 2400 mm | 42 mm | 80 mm | 13,440 kg | |
| KHI 25F | 42 mm | 80 mm | 2500 mm | 42 mm | 80 mm | 14,000 kg | |
| KHI 26F | 42 mm | 80 mm | 2600 mm | 42 mm | 80 mm | 14,560 kg | |
| KHI 27F | 42 mm | 80 mm | 2700 mm | 42 mm | 80 mm | 15,120 kg | |
| KHI 28F | 42 mm | 80 mm | 2800 mm | 42 mm | 80 mm | 15,680 kg | |
| KHI 29F | 42 mm | 80 mm | 2900 mm | 42 mm | 80 mm | 16,240 kg | |
| KHI 30F | 42 mm | 80 mm | 3000 mm | 42 mm | 80 mm | 17,800 kg | |
| KHI 60F | 42 mm | 80 mm | 6000 mm | 42 mm | 80 mm | 35,600 kg |
