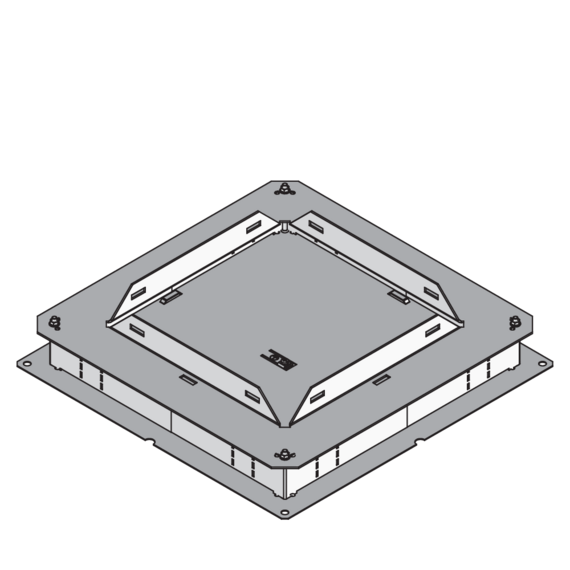

The UBDHB250 3V components are false floor sockets that are installed as pull boxes and built-in boxes on screed-covered underfloor ducts. They have a mounting hole to accommodate a formwork body, which is replaced by a square plastic or stainless steel installation unit during final assembly. The supplied earthing clamps are used for equipotential bonding. The floor sockets with side walls that can be bent open on all sides are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 and have VDE/TÜV approval in accordance with DIN EN 50085.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Load requirements according to: DIN EN 50085
Approvals and Certificates
Approvals and Certificates
- VDE/TÜV approval according to DIN EN 50085
Products
| Products | H height | Hmin minimum installation height | B1 width 1 | B2 width 2 | L1 length 1 | L2 length 2 | mounting box maximum number of installable device casings | E fitting dimension | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UBDHB250 28-259V | 31 mm | 67 mm | 385 mm | 400 mm | 385 mm | 400 mm | 3 | 262 x 262 mm | 0 | 1 | 2,832 kg | ||
| UBDHB250 38-259V | 41 mm | 77 mm | 385 mm | 400 mm | 385 mm | 400 mm | 3 | 262 x 262 mm | 0 | 1 | 2,916 kg | ||
| UBDHB250 48-259V | 51 mm | 87 mm | 385 mm | 400 mm | 385 mm | 400 mm | 3 | 262 x 262 mm | 0 | 1 | 3,004 kg |
