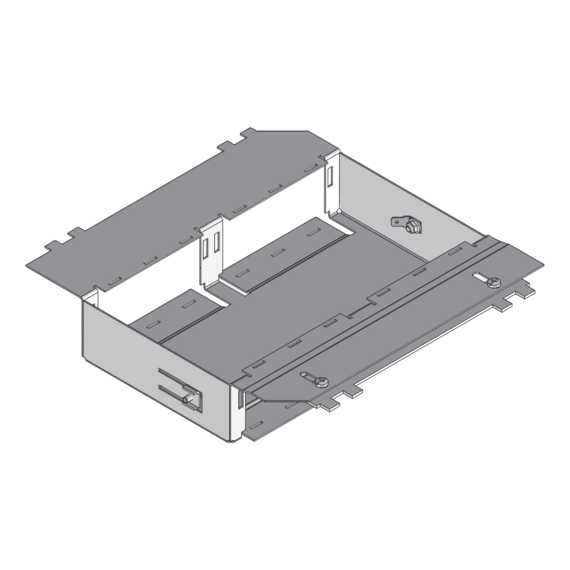

The UGE3 VDDE components are service outlets with side panels that can be bolted into square stainless steel installation units suitable for up to three mounting boxes. The inserts can be equipped with up to four installation devices measuring 45x45 mm and up to 6 single data jacks. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Load requirements according to: DIN EN 50085
Approvals and Certificates
Approvals and Certificates
- VDE/TÜV approval according to DIN EN 50085
Products

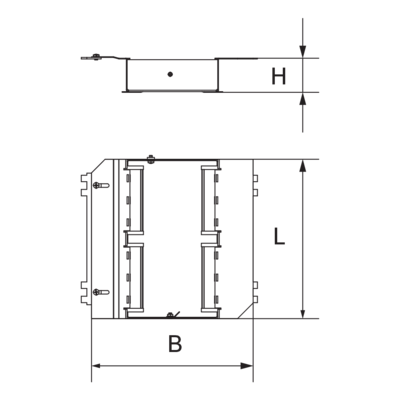

| Products | H height | Hmin minimum installation height | B width | L length | E1 fitting dimension E1 | E2 fitting dimension E2 | installation units/outlet socket max. number of installation units | W Weight per storage unit | bookmark | |
|---|---|---|---|---|---|---|---|---|---|---|
| UGE3-VDDE 4 | 47 mm | 76 mm | 227 mm | 224 mm | 6 | 90 mm | 46 mm | 4x 45x45 mm | 0,594 kg |
