JLF40 Lift shaft anchor

The lift shaft anchor JLF40 is approved throughout Europe in accordance with ETA-21/1071. The load-bearing components (anchor and shackle) are made of steel. The stirrup anchor with an installation depth of 190 mm ensures a secure and permanent connection in the concrete. The lift shaft anchor is suitable for centric tensile loads and thus for an inclined tensile load of up to ± 5°. It has a load capacity of up to 40 kN, which can also be recognised by the colour of the plastic housing.

Tender text

You can find the appropriate tender text for this product on these portals:

• Ausschreiben.de
• Heinze

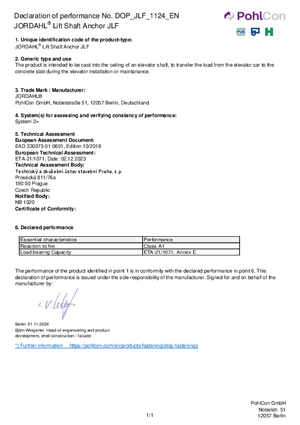

: ETA-21/1071
