ST 81 Vertical ladder, I profile

The ST 81 heavy-duty vertical ladders are made from hot-dip galvanised steel. They consist of perforated side rails with I profiles and rungs made of 40x22 mm profile rails. Side rails and rungs are supplied with all required bolts and nuts and assembled on site. The ladders are designed for a maximum load of up to 2.50 kN, are 200 to 1200 mm wide and are available in standard lengths of 3000 and 6000 mm.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Request a callback now

Approvals and Certificates

Electr. conductivity checked according to DIN EN 61537

Products

steel, batch/hot-dip galvanized

Products	L length	B1 width 1	B2 width 2	H height	P_max maximum load	W Weight per storage unit
ST 81-02-3F	3000 mm	242 mm	158 mm	80 mm	2,50 kN	40,035 kg
ST 81-03-3F	3000 mm	342 mm	258 mm	80 mm	2,50 kN	40,860 kg
ST 81-04-3F	3000 mm	442 mm	358 mm	80 mm	2,50 kN	41,685 kg
ST 81-05-3F	3000 mm	542 mm	458 mm	80 mm	2,50 kN	42,510 kg
ST 81-06-3F	3000 mm	642 mm	558 mm	80 mm	2,50 kN	43,335 kg
ST 81-07-3F	3000 mm	742 mm	658 mm	80 mm	2,50 kN	44,155 kg
ST 81-08-3F	3000 mm	842 mm	758 mm	80 mm	2,50 kN	44,980 kg
ST 81-09-3F	3000 mm	942 mm	858 mm	80 mm	2,50 kN	45,805 kg
ST 81-10-3F	3000 mm	1042 mm	958 mm	80 mm	2,50 kN	46,630 kg
ST 81-11-3F	3000 mm	1142 mm	1058 mm	80 mm	2,50 kN	47,455 kg
ST 81-12-3F	3000 mm	1242 mm	1158 mm	80 mm	2,50 kN	48,275 kg
ST 81-02F	6000 mm	242 mm	158 mm	80 mm	2,50 kN	80,070 kg
ST 81-03F	6000 mm	342 mm	258 mm	80 mm	2,50 kN	81,720 kg
ST 81-04F	6000 mm	442 mm	358 mm	80 mm	2,50 kN	83,370 kg
ST 81-05F	6000 mm	542 mm	458 mm	80 mm	2,50 kN	85,020 kg
ST 81-06F	6000 mm	642 mm	558 mm	80 mm	2,50 kN	86,670 kg
ST 81-07F	6000 mm	742 mm	658 mm	80 mm	2,50 kN	88,310 kg
ST 81-08F	6000 mm	842 mm	758 mm	80 mm	2,50 kN	89,960 kg
ST 81-09F	6000 mm	942 mm	858 mm	80 mm	2,50 kN	91,610 kg
ST 81-10F	6000 mm	1042 mm	958 mm	80 mm	2,50 kN	93,260 kg
ST 81-11F	6000 mm	1142 mm	1058 mm	80 mm	2,50 kN	94,910 kg
ST 81-12F	6000 mm	1242 mm	1158 mm	80 mm	2,50 kN	96,550 kg

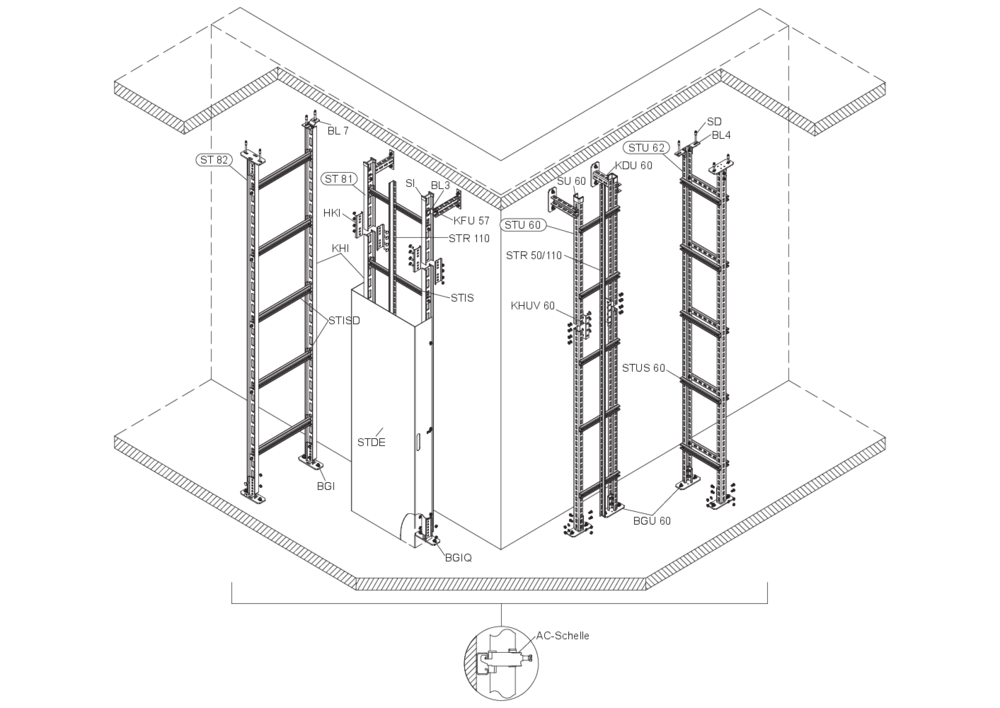

Detail and application images

Hover to zoom

Accessories

Cable clamp for fastening to C profile rails

STR 110

Vertical ladder separating strip, height = 50 mm

Bolted head plate, KHI

BGIQ

Bolted head plate turned 90°, KHI

BL 7

Corner angle

Protection cap, KDI/KHI

STDE

Vertical ladder collision protection

STDES

Anti-pullout bracket
