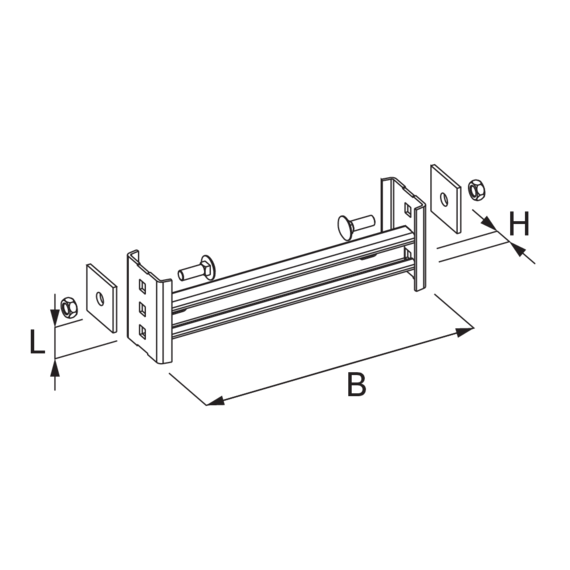

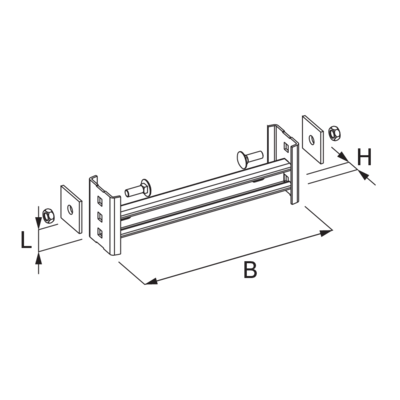

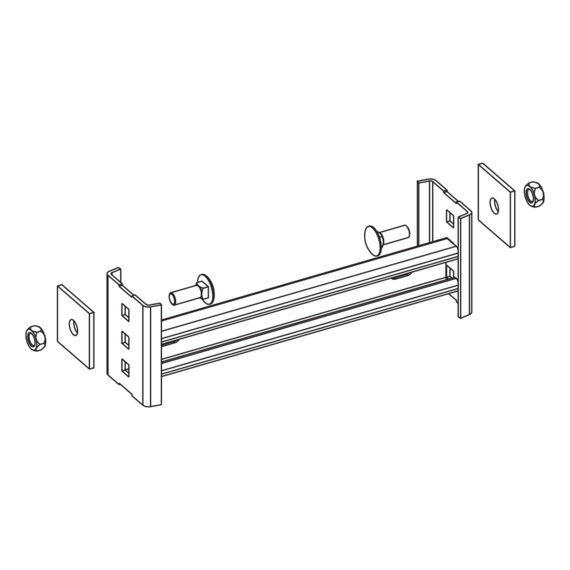

The rungs STIS are installed while fitting the vertical ladder and bolted to the side rail. They are suitable for ST 81 vertical ladders. The rungs are 200 to 1200 wide mm corresponding to the vertical ladder width and are made of hot-dip galvanised steel.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| STIS 02F | 22 mm | 200 mm | 40 mm | 0,887 kg | ||
| STIS 03F | 22 mm | 300 mm | 40 mm | 1,052 kg | ||
| STIS 04F | 22 mm | 400 mm | 40 mm | 1,217 kg | ||
| STIS 05F | 22 mm | 500 mm | 40 mm | 1,382 kg | ||
| STIS 06F | 22 mm | 600 mm | 40 mm | 1,547 kg | ||
| STIS 07F | 22 mm | 700 mm | 40 mm | 1,711 kg | ||
| STIS 08F | 22 mm | 800 mm | 40 mm | 1,876 kg | ||
| STIS 09F | 22 mm | 900 mm | 40 mm | 2,041 kg | ||
| STIS 10F | 22 mm | 1000 mm | 40 mm | 2,206 kg | ||
| STIS 11F | 22 mm | 1100 mm | 40 mm | 2,371 kg | ||
| STIS 12F | 22 mm | 1200 mm | 40 mm | 2,535 kg |
