The wall bracket KSLW is intended for maximum loads of up to 1.3 kN and is ideal for mesh cable trays and cable trays up to 400 mm wide. It consists of a centrally perforated W/trapezoidal profile 60 x 20 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. The KSL-SP spacer must be installed to prevent deformation of the profile due to the preload force of the fastening element. FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process

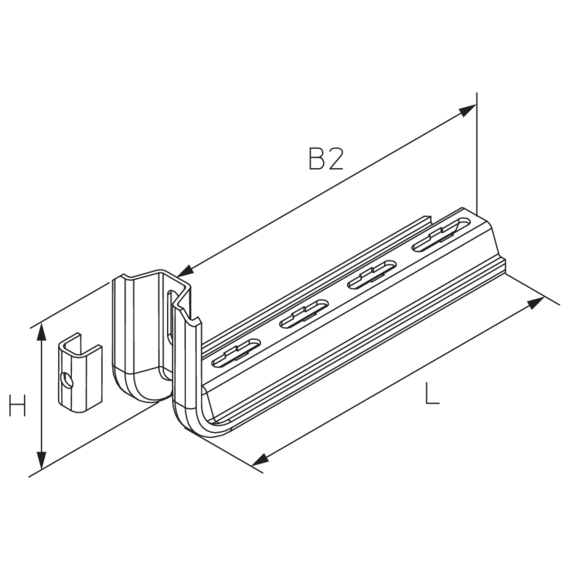

| Products | H height | B1 width | B2 width | L length | Pmax maximum load | FD/P dowel-to-anchor load | weight | bookmark |
|---|---|---|---|---|---|---|---|---|
| KSLW 010S | 90 mm | 100 mm | 120 mm | 145 mm | 1,30 kN | 2,80 | 0,390 kg | |
| KSLW 015S | 90 mm | 150 mm | 170 mm | 195 mm | 1,00 kN | 3,40 | 0,470 kg | |
| KSLW 020S | 90 mm | 200 mm | 220 mm | 245 mm | 0,90 kN | 4,10 | 0,560 kg | |
| KSLW 025S | 90 mm | 250 mm | 270 mm | 295 mm | 0,70 kN | 4,80 | 0,640 kg | |
| KSLW 030S | 90 mm | 300 mm | 320 mm | 345 mm | 0,60 kN | 5,50 | 0,720 kg | |
| KSLW 040S | 90 mm | 400 mm | 420 mm | 445 mm | 0,50 kN | 6,90 | 0,890 kg | |
| KSLW 050S | 90 mm | 500 mm | 520 mm | 545 mm | 7,70 | 1,060 kg | ||
| KSLW 060S | 90 mm | 600 mm | 620 mm | 645 mm | 9,20 | 1,210 kg |
steel, batch/hot-dip galvanized
| Products | H height | B1 width | B2 width | L length | Pmax maximum load | FD/P dowel-to-anchor load | weight | bookmark |
|---|---|---|---|---|---|---|---|---|
| KSLW 010F | 90 mm | 100 mm | 120 mm | 145 mm | 1,30 kN | 2,80 | 0,410 kg | |
| KSLW 015F | 90 mm | 150 mm | 170 mm | 195 mm | 1,00 kN | 3,40 | 0,500 kg | |
| KSLW 020F | 90 mm | 200 mm | 220 mm | 245 mm | 0,90 kN | 4,10 | 0,590 kg | |
| KSLW 025F | 90 mm | 250 mm | 270 mm | 295 mm | 0,70 kN | 4,80 | 0,680 kg | |
| KSLW 030F | 90 mm | 300 mm | 320 mm | 345 mm | 0,60 kN | 5,50 | 0,760 kg | |
| KSLW 040F | 90 mm | 400 mm | 420 mm | 445 mm | 0,50 kN | 6,90 | 0,950 kg | |
| KSLW 050F | 90 mm | 500 mm | 520 mm | 545 mm | 7,70 | 1,130 kg | ||
| KSLW 060F | 90 mm | 600 mm | 620 mm | 645 mm | 9,20 | 1,290 kg |
