Bracket fixing (heavy) for dowelling or clamping for universal fixing with 0°, 45° or 90° bracket arrangement. Suitable for clamping range from 100 to 300 mm. 4 clamping points are required for clamp fixing.
The maximum bracket loads of the brackets to be used apply for 0°, 45°, 90° dowel fixing and 90° clamp fixing. When clamping at 0° and 45°, the friction ratios must be observed.
Tender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

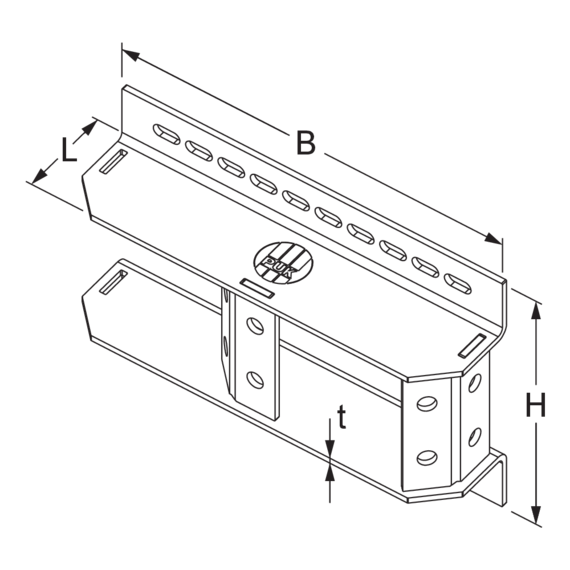

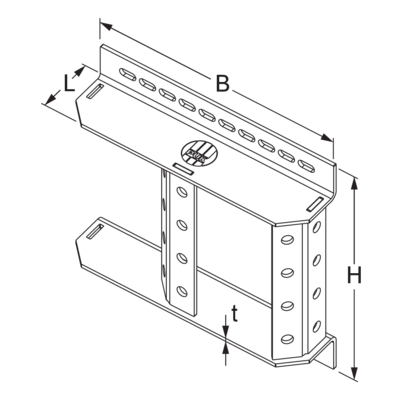

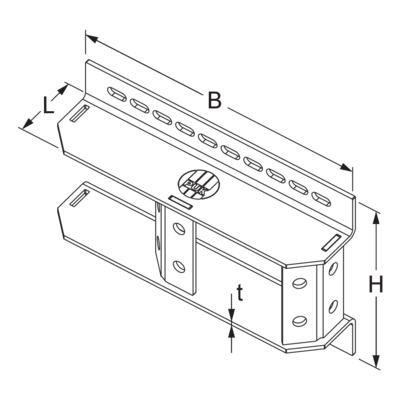

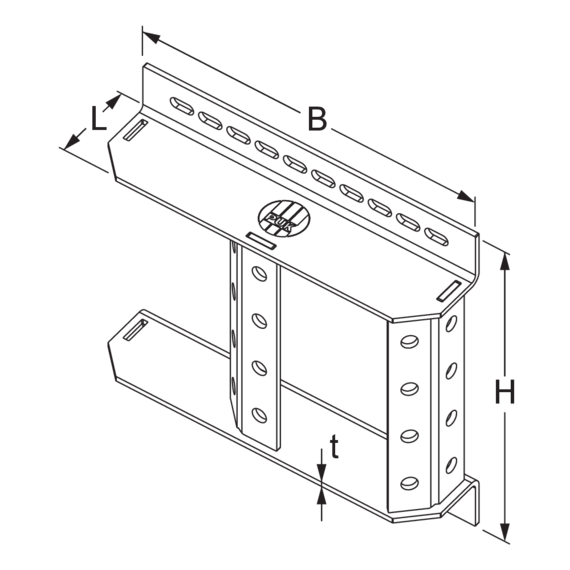

| Products | H height | B width | L length | t material thickness | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|

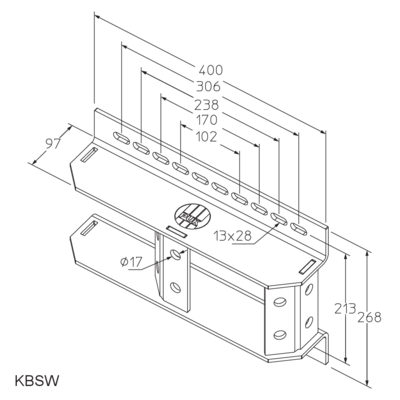

| KBSW F | 268 mm | 400 mm | 97 mm | 6 mm | 6,809 kg | |

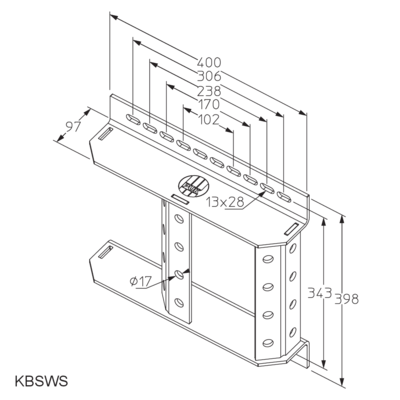

| KBSWS F | 398 mm | 400 mm | 97 mm | 6 mm | 7,907 kg |
