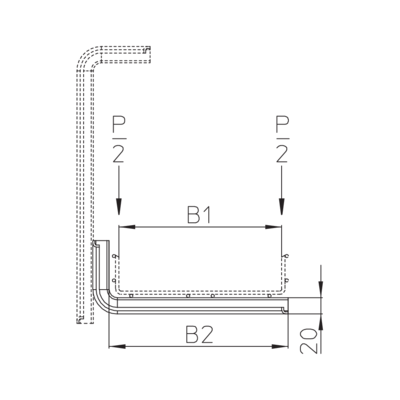

The strut bracket KSL is attached to the KDSL bracket holder and is intended for maximum loads of up to 1.3 kN. It consists of a centrally perforated W/trapezoidal profile 60 x 20 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process
| Products | L length | B1 width 1 | B2 width 2 | H height | Pmax maximum load | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|---|
| KSL 010S | 145 mm | 100 mm | 120 mm | 90 mm | 1,30 kN | 0,380 kg | ||
| KSL 015S | 195 mm | 150 mm | 170 mm | 90 mm | 1,00 kN | 0,460 kg | ||
| KSL 020S | 245 mm | 200 mm | 220 mm | 90 mm | 0,90 kN | 0,550 kg | ||
| KSL 025S | 295 mm | 250 mm | 270 mm | 90 mm | 0,70 kN | 0,630 kg | ||
| KSL 030S | 345 mm | 300 mm | 320 mm | 90 mm | 0,60 kN | 0,710 kg | ||
| KSL 040S | 445 mm | 400 mm | 420 mm | 90 mm | 0,50 kN | 0,880 kg |
steel, batch/hot-dip galvanized
| Products | L length | B1 width 1 | B2 width 2 | H height | Pmax maximum load | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|---|
| KSL 010F | 145 mm | 100 mm | 120 mm | 90 mm | 1,30 kN | 0,400 kg | ||
| KSL 015F | 195 mm | 150 mm | 170 mm | 90 mm | 1,00 kN | 0,490 kg | ||
| KSL 020F | 245 mm | 200 mm | 220 mm | 90 mm | 0,90 kN | 0,580 kg | ||
| KSL 025F | 295 mm | 250 mm | 270 mm | 90 mm | 0,70 kN | 0,670 kg | ||
| KSL 030F | 345 mm | 300 mm | 320 mm | 90 mm | 0,60 kN | 0,750 kg | ||
| KSL 040F | 445 mm | 400 mm | 420 mm | 90 mm | 0,50 kN | 0,940 kg |
