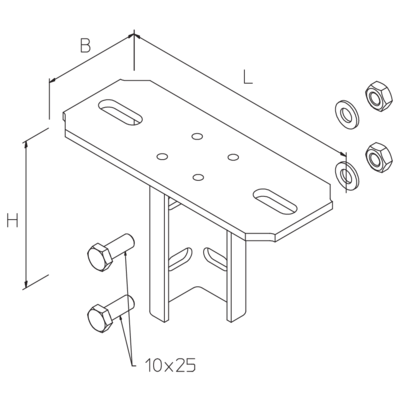

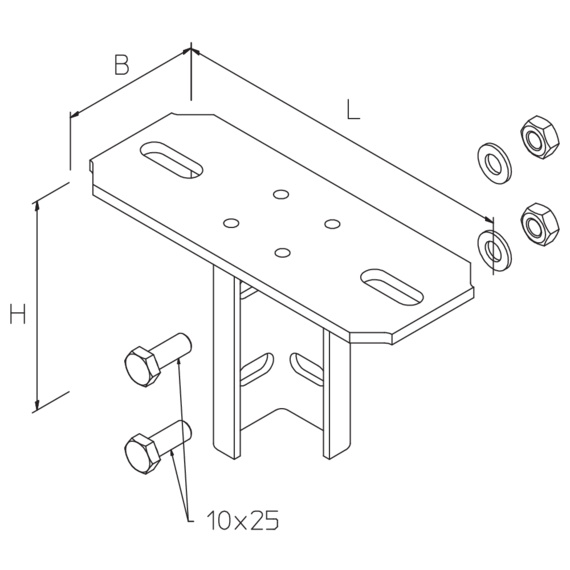

The head plate BGU 60 is used for mounting bracket holder KHU 60 on ceilings. It is bolted to the bracket holder and dowelled to the ceiling. STU 60 and STU 62 vertical ladders can also be attached to the ceiling and/or floor using the head plate BGU 60. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, galvanic zinc plated
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| BGU 60GV | 120 mm | 80 mm | 200 mm | 1,251 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| BGU 60F | 120 mm | 80 mm | 200 mm | 1,289 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| BGU 60E | 120 mm | 80 mm | 200 mm | 1,259 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| BGU 60E4 | 120 mm | 80 mm | 200 mm | 1,256 kg |
