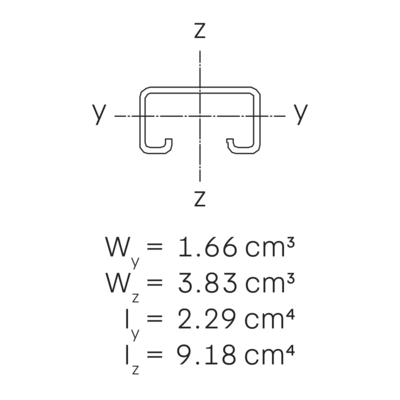

The profile rail KHA 4 consists of a C+ profile 48 x 26 mm with continuous perforation and a slot width of 22 mm (material thickness = 2.5 mm). It is made of hot-dip galvanised steel and is available in lengths of 3000 or 6000 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized
| Products | L length | BP profile width | HP profile height | t material thickness | t Material strength | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| KHA 4-30F | 3000 mm | 48 mm | 26 mm | 2,50 mm | 2,5 mm | 6,800 kg | |
| KHA 4-60F | 6000 mm | 48 mm | 26 mm | 2,50 mm | 2,5 mm | 13,600 kg |
