A 9 40x25 mm profile rail, unperforated

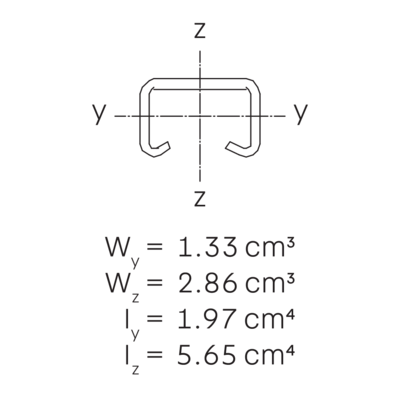

The profile rail A 9 is unperforated and consists of a C+ profile 39.5 x 25 mm with a slot width of 18 mm (material thickness = 2.75 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 3000 or 6000 mm.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Products

steel, bright rolled
Products HP profile height BP profile width L length t material thickness W Weight per storage unit bookmark
A 9-30B25 mm39,5 mm3000 mm2,75 mm5,950 kg
A 9-60B25 mm39,5 mm6000 mm2,75 mm12,522 kg
steel, batch/hot-dip galvanized
Products HP profile height BP profile width L length t material thickness W Weight per storage unit bookmark
A 9-30F25 mm39,5 mm3000 mm2,75 mm6,900 kg
A 9-60F25 mm39,5 mm6000 mm2,75 mm13,900 kg
