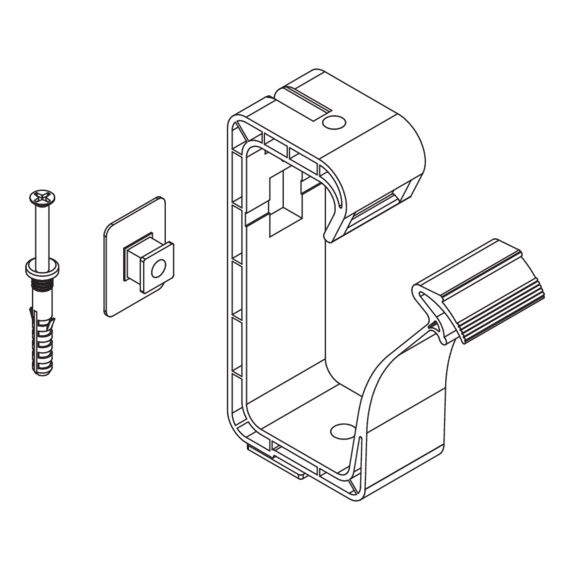

The multiple cable holder SH ND K is used for flexible and cost-effective routing of installation cables or smaller cable bundles on walls or ceilings. Nail anchors and quick-mounting clips are included. The multiple cable holder is made of halogen-free and silicone-free polyamide and is available with two temperature resistance levels: It is flame-retardant up to 750°C and up to 960°C according to the glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1. The multiple cable holder holds 15 to 30 cables. This information relates to NYM cable (3x1.5 mm²).
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
polyamide

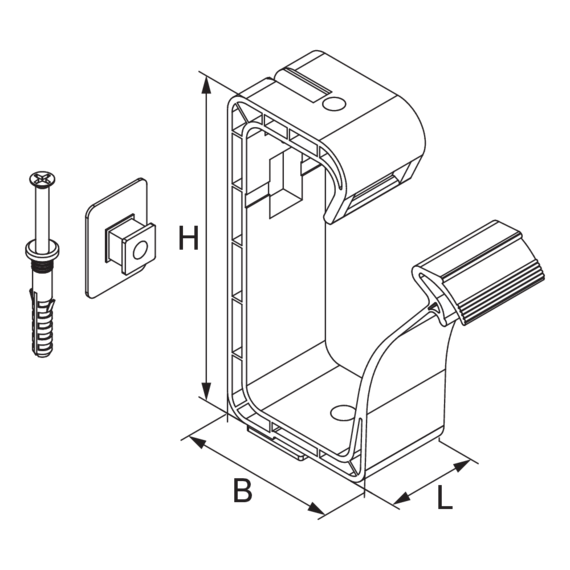

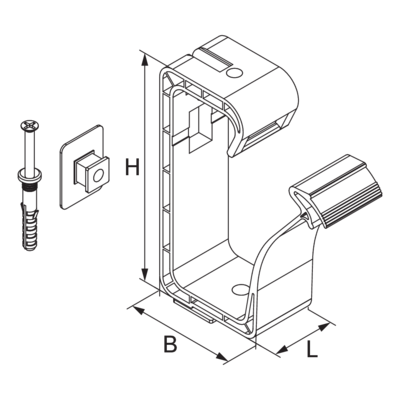

| Products | H height | B width | L length | cables max. number of cables | Tmax Test temperature | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | |
|---|---|---|---|---|---|---|---|---|---|
| SH 15 ND FWK | 94 mm | 49 mm | 28 mm | RAL 7030 | 15 | 960 °C | 0,039 kg | ||
| SH 15 ND K | 93 mm | 48 mm | 27 mm | RAL 7035 | 15 | 750 °C | 0,035 kg | ||
| SH 30 ND FWK | 129 mm | 60 mm | 28 mm | RAL 7030 | 30 | 960 °C | 0,060 kg | ||
| SH 30 ND K | 128 mm | 59 mm | 27 mm | RAL 7035 | 30 | 750 °C | 0,056 kg |
