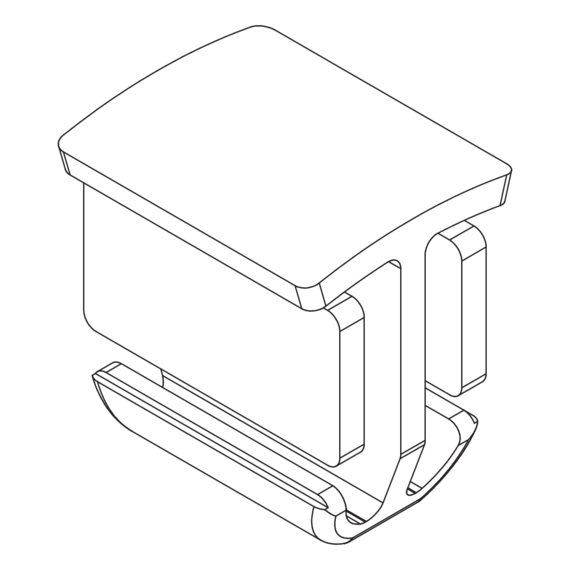

Plastic SH multiple cable holders can be joined back to back using the KOT K coupling part. This maximises the number of cables that can be accommodated. The coupling part is made of halogen-free and silicone-free polyamide and is available with two temperature resistance levels: It is flame-retardant up to 750°C and up to 960°C according to the glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
polyamide
Products | Tmax Test temperature | W Weight per storage unit | bookmark | |
---|---|---|---|---|
KOT FWK | RAL 7030 | 960 °C | 0,004 kg | |
KOT K | RAL 7035 | 750 °C | 0,004 kg |
