KHU 40 bracket support, 40x30 mm

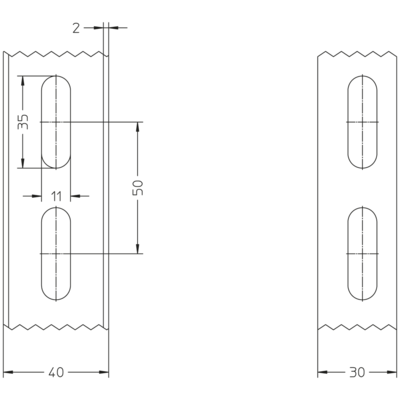

Bracket support, U-profile 40x30x2 mm, continuously three-way perforated.

Higher loads can be achieved by using the support piece.

galvanized, according to DIN EN ISO 19598 / DIN EN ISO 2081

	height	width	length	weight
KHU 40-30GV	30 mm	40 mm	3000 mm	3,37 kg

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	weight
KHU 40-02S	30 mm	40 mm	200 mm	0,22 kg
KHU 40-03S	30 mm	40 mm	300 mm	0,34 kg
KHU 40-04S	30 mm	40 mm	400 mm	0,45 kg
KHU 40-05S	30 mm	40 mm	500 mm	0,56 kg
KHU 40-06S	30 mm	40 mm	600 mm	0,67 kg
KHU 40-07S	30 mm	40 mm	700 mm	0,79 kg
KHU 40-08S	30 mm	40 mm	800 mm	0,90 kg
KHU 40-09S	30 mm	40 mm	900 mm	1,01 kg
KHU 40-10S	30 mm	40 mm	1000 mm	1,12 kg
KHU 40-11S	30 mm	40 mm	1100 mm	1,23 kg
KHU 40-12S	30 mm	40 mm	1200 mm	1,35 kg
KHU 40-13S	30 mm	40 mm	1300 mm	1,55 kg
KHU 40-14S	30 mm	40 mm	1400 mm	1,60 kg
KHU 40-15S	30 mm	40 mm	1500 mm	1,70 kg
KHU 40-30S	30 mm	40 mm	3000 mm	3,40 kg
KHU 40-60S	30 mm	40 mm	6000 mm	6,73 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	weight
KHU 40-02F	30 mm	40 mm	200 mm	0,24 kg
KHU 40-03F	30 mm	40 mm	300 mm	0,36 kg
KHU 40-04F	30 mm	40 mm	400 mm	0,48 kg
KHU 40-05F	30 mm	40 mm	500 mm	0,60 kg
KHU 40-06F	30 mm	40 mm	600 mm	0,72 kg
KHU 40-07F	30 mm	40 mm	700 mm	0,84 kg
KHU 40-08F	30 mm	40 mm	800 mm	0,96 kg
KHU 40-09F	30 mm	40 mm	900 mm	1,10 kg
KHU 40-10F	30 mm	40 mm	1000 mm	1,20 kg
KHU 40-11F	30 mm	40 mm	1100 mm	1,32 kg
KHU 40-12F	30 mm	40 mm	1200 mm	1,44 kg
KHU 40-13F	30 mm	40 mm	1300 mm	1,60 kg
KHU 40-14F	30 mm	40 mm	1400 mm	1,70 kg
KHU 40-15F	30 mm	40 mm	1500 mm	1,80 kg
KHU 40-30F	30 mm	40 mm	3000 mm	3,60 kg
KHU 40-60F	30 mm	40 mm	6000 mm	7,20 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	weight
KHU 40-02E	30 mm	40 mm	200 mm	0,23 kg
KHU 40-03E	30 mm	40 mm	300 mm	0,34 kg
KHU 40-04E	30 mm	40 mm	400 mm	0,45 kg
KHU 40-05E	30 mm	40 mm	500 mm	0,57 kg
KHU 40-06E	30 mm	40 mm	600 mm	0,68 kg
KHU 40-07E	30 mm	40 mm	700 mm	0,79 kg
KHU 40-08E	30 mm	40 mm	800 mm	0,90 kg
KHU 40-09E	30 mm	40 mm	900 mm	1,02 kg
KHU 40-10E	30 mm	40 mm	1000 mm	1,13 kg
KHU 40-11E	30 mm	40 mm	1100 mm	1,24 kg
KHU 40-12E	30 mm	40 mm	1200 mm	1,36 kg
KHU 40-13E	30 mm	40 mm	1300 mm	1,47 kg
KHU 40-14E	30 mm	40 mm	1400 mm	1,60 kg
KHU 40-15E	30 mm	40 mm	1500 mm	1,70 kg
KHU 40-30E	30 mm	40 mm	3000 mm	3,40 kg
KHU 40-60E	30 mm	40 mm	6000 mm	6,80 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

	height	width	length	weight
KHU 40-02E4	30 mm	40 mm	200 mm	0,23 kg
KHU 40-03E4	30 mm	40 mm	300 mm	0,34 kg
KHU 40-04E4	30 mm	40 mm	400 mm	0,46 kg
KHU 40-05E4	30 mm	40 mm	500 mm	0,57 kg
KHU 40-06E4	30 mm	40 mm	600 mm	0,69 kg
KHU 40-07E4	30 mm	40 mm	700 mm	0,80 kg
KHU 40-08E4	30 mm	40 mm	800 mm	0,92 kg
KHU 40-09E4	30 mm	40 mm	900 mm	1,03 kg
KHU 40-10E4	30 mm	40 mm	1000 mm	1,14 kg
KHU 40-11E4	30 mm	40 mm	1100 mm	1,26 kg
KHU 40-12E4	30 mm	40 mm	1200 mm	1,40 kg
KHU 40-13E4	30 mm	40 mm	1300 mm	1,50 kg
KHU 40-14E4	30 mm	40 mm	1400 mm	1,60 kg
KHU 40-15E4	30 mm	40 mm	1500 mm	1,72 kg
KHU 40-30E4	30 mm	40 mm	3000 mm	3,43 kg
KHU 40-60E4	30 mm	40 mm	6000 mm	6,90 kg

Details / Applications

Accessories

KDU 40

bracket support, 40x30 mm

BGU 40

screwed head plate, KHU 40

KWF

wall/handle bracket, light-duty

wall/handle bracket, standard

KHUV 40

connector, KHU 40

KHUSS 40

support piece, KHU 40

SU 40

protection cap, KHU 40

BGUD

screwed head plate ±30°, KHU 40/57/60

BGUDW

screwed head plate 30°-90°, KHU 40/57/60
