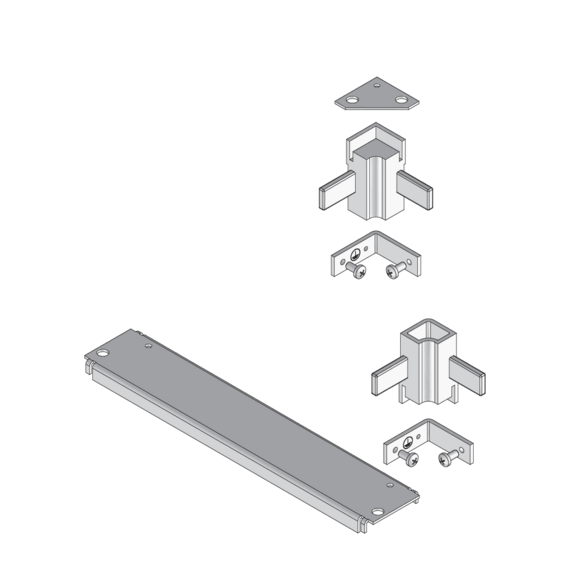

UEBSMB products are 90° bend installation kits. To install the screed-flush duct systems, the duct sections are pushed together and connected using the bend installation sets and then bolted together using the corner connectors supplied. For the final assembly of the 90° bend, transverse cross-beams are inserted to additionally support the cover joints. The components of the sets are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. They come with the following additional components: transverse cross-beam with countersunk sheet metal bolts, corner connector plate and corner connectors with button head screws.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Load requirements according to: DIN EN 50085
Approvals and Certificates
Approvals and Certificates
- VDE/TÜV approval according to DIN EN 50085
Products
| Products | W Weight per storage unit | incl. show all inclusive accessoires | bookmark | |
|---|---|---|---|---|
| UEBSMB 20S | 90 ° | 0,355 kg | ||
| UEBSMB 30S | 90 ° | 0,464 kg | ||
| UEBSMB 40S | 90 ° | 1,063 kg | ||
| UEBSMB 50S | 90 ° | 1,309 kg |
