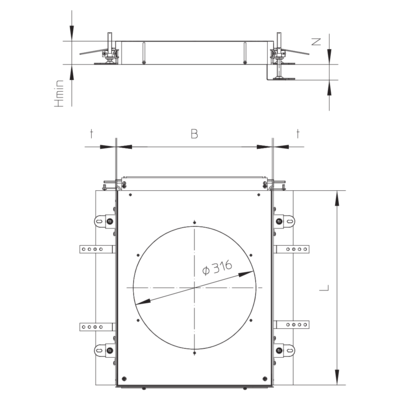

UEBSAM60 R is an attachment accessory for screed-covered duct systems. The items are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 and are designed for typical office traffic loads. The sets are delivered pre-assembled on aluminium side profiles with bolted cross-beams, blanked assembly openings, corner pieces and various additional components. UEBSAM60 R add-on units have mounting openings with round cut-outs and are 400 mm wide, 50 mm long and are made of material 3 mm thick. The minimum installation height is 60 mm and the levelling range is 50 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Load requirements according to: DIN EN 50085
Approvals and Certificates
Approvals and Certificates
- VDE/TÜV approval according to DIN EN 50085
Products
| Products | Hmin minimum installation height | N levelling range | t material thickness | E fitting dimension | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| UEBSAM60-307R 40S | 60 mm | 50 mm | 3,00 mm | 307 mm | 9,013 kg |
