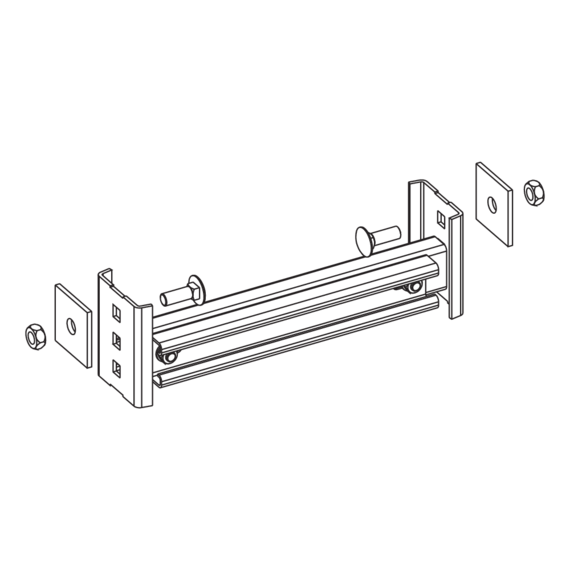

The rungs STISD are installed while fitting the vertical ladder and bolted to the side rail. They are suitable for ST 82 vertical ladders for double-sided cable assignment. They are 200 to 1200 mm wide corresponding to the vertical ladder width and are made of hot-dip galvanised steel.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

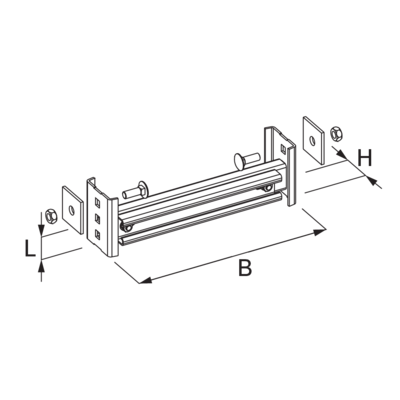

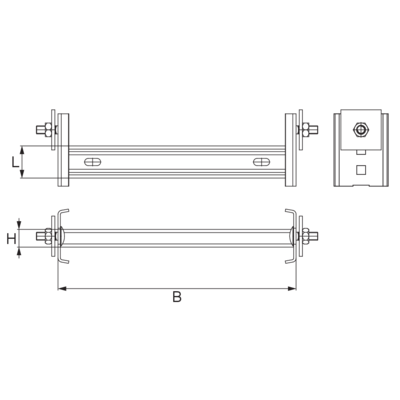

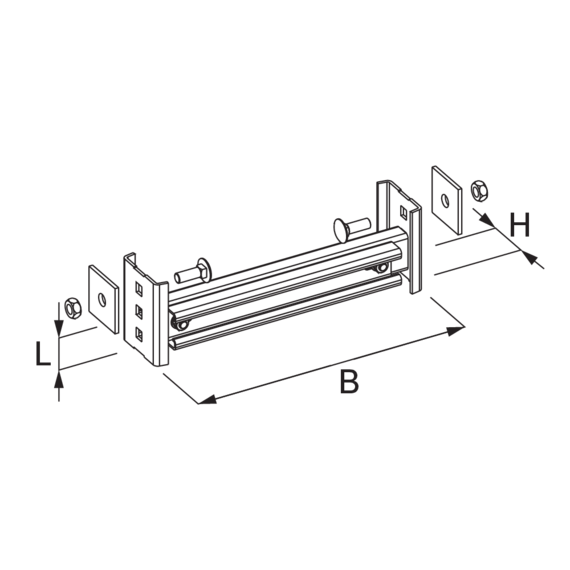

| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| STISD 02F | 44 mm | 200 mm | 40 mm | 1,149 kg | ||
| STISD 03F | 44 mm | 300 mm | 40 mm | 1,464 kg | ||
| STISD 04F | 44 mm | 400 mm | 40 mm | 1,782 kg | ||
| STISD 05F | 44 mm | 500 mm | 40 mm | 2,094 kg | ||
| STISD 06F | 44 mm | 600 mm | 40 mm | 2,269 kg | ||
| STISD 07F | 44 mm | 700 mm | 40 mm | 2,733 kg | ||
| STISD 08F | 44 mm | 800 mm | 40 mm | 3,058 kg | ||
| STISD 09F | 44 mm | 900 mm | 40 mm | 3,373 kg | ||
| STISD 10F | 44 mm | 1000 mm | 40 mm | 3,698 kg | ||
| STISD 11F | 44 mm | 1100 mm | 40 mm | 4,013 kg | ||
| STISD 12F | 44 mm | 1200 mm | 40 mm | 4,332 kg |
