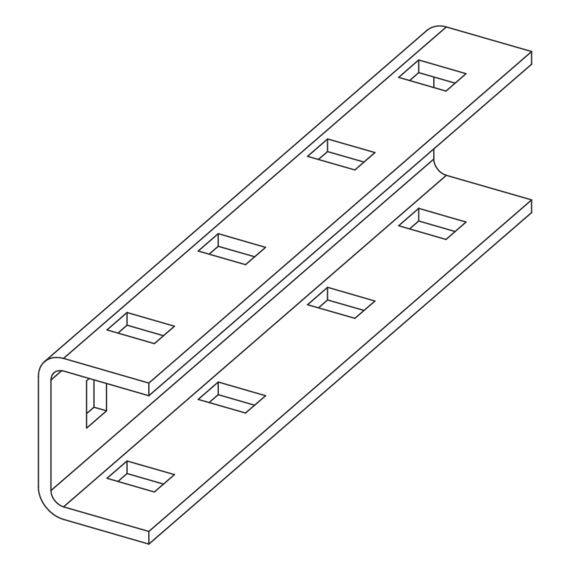

KHU 60 bracket holders and STU 60/62 vertical ladders can be connected using the connector KHUV 60. The connector is 51 mm high and 210 mm long. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, galvanic zinc plated

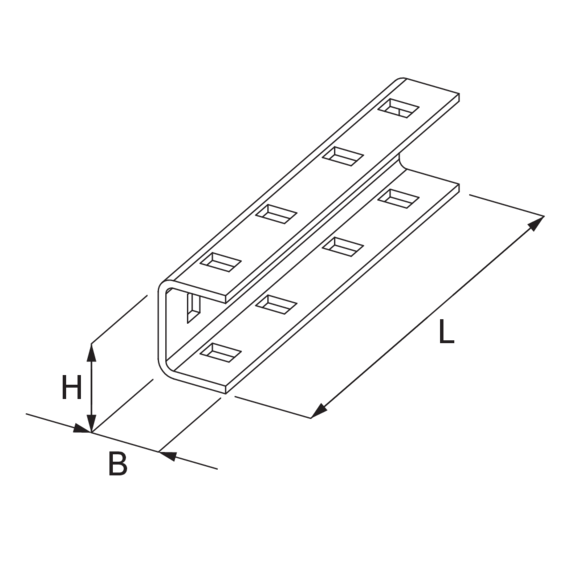

| Products | H height | B width | L length | t material thickness | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| KHUV 60GV | 51 mm | 35 mm | 210 mm | 4,00 mm | 0,771 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | t material thickness | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| KHUV 60F | 51 mm | 35 mm | 210 mm | 4,00 mm | 0,828 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | H height | B width | L length | t material thickness | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| KHUV 60E | 51 mm | 35 mm | 210 mm | 4,00 mm | 0,787 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | H height | B width | L length | t material thickness | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| KHUV 60E4 | 51 mm | 35 mm | 210 mm | 4,00 mm | 0,796 kg |
