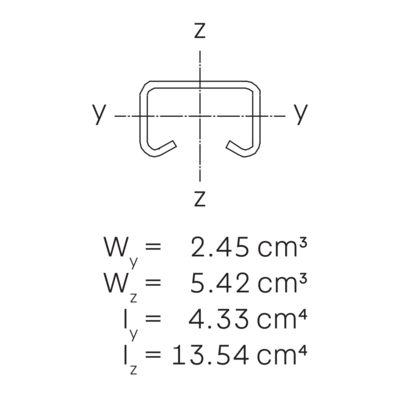

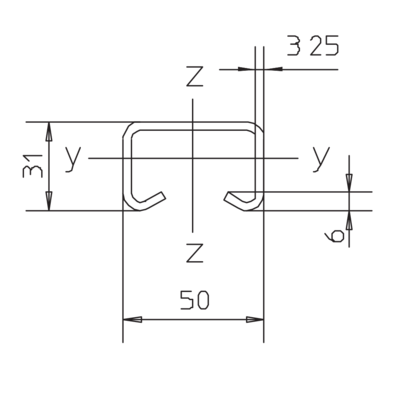

The profile rail A 2 is unperforated and consists of a C+ profile 50 x 31 mm with a slot width of 22 mm (material thickness = 3.25 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 3000 or 6000 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, bright rolled
| Products | L length | BP profile width | HP profile height | t material thickness | t Material strength | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| A 2-30B | 3000 mm | 50 mm | 31 mm | 3,25 mm | 3,25 mm | 9,120 kg | |
| A 2-60B | 6000 mm | 50 mm | 31 mm | 3,25 mm | 3,25 mm | 18,078 kg |
steel, batch/hot-dip galvanized
| Products | L length | BP profile width | HP profile height | t material thickness | t Material strength | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| A 2-30F | 3000 mm | 50 mm | 31 mm | 3,25 mm | 3,25 mm | 9,400 kg | |
| A 2-60F | 6000 mm | 50 mm | 31 mm | 3,25 mm | 3,25 mm | 18,800 kg |
