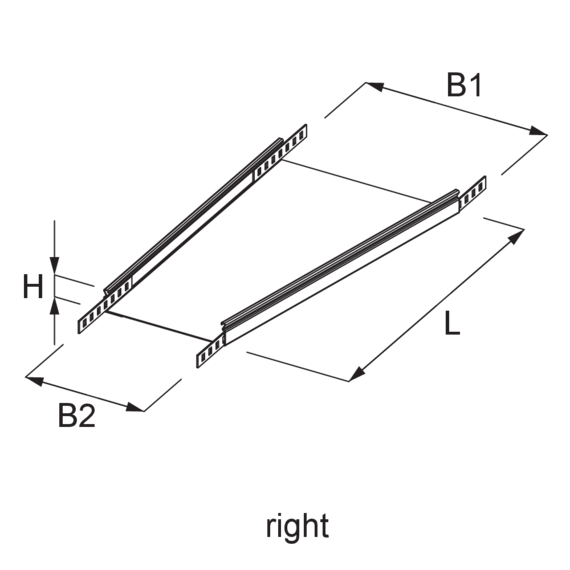

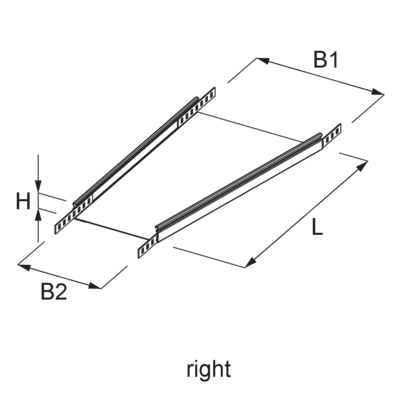

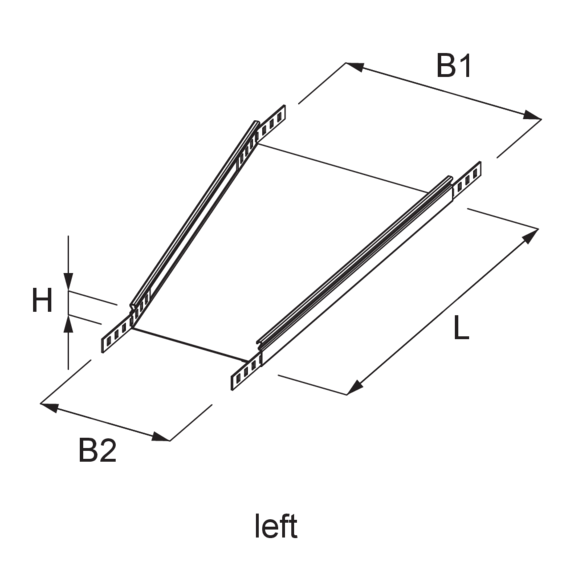

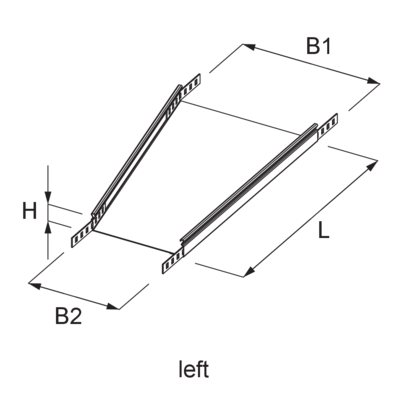

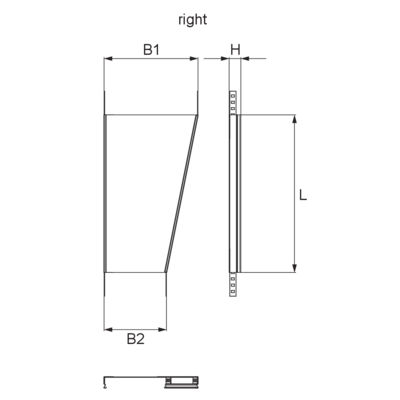

The cable tray reducer RR 35 with integrated side connectors enables the width of the cable tray to be reduced. It is available in three different designs: It can narrow towards the centre or on the left or right side. Specify the desired design (left, centre, right) and width when ordering. The entrance width is always reduced by 100 mm. The cable tray reducer has a standard length of 500 mm and is suitable for cable trays with sides 35 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Reduces the width of the cable tray
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B1 width 1 | B2 width 2 | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| RR 35-20S | 35 mm | 200 mm | 100 mm | 500 mm | 1,248 kg | ||
| RR 35-30S | 35 mm | 300 mm | 200 mm | 500 mm | 1,638 kg |
steel, batch/hot-dip galvanized
| Products | H height | B1 width 1 | B2 width 2 | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|---|
| RR 35-20F | 35 mm | 200 mm | 100 mm | 500 mm | 1,372 kg | ||
| RR 35-30F | 35 mm | 300 mm | 200 mm | 500 mm | 1,802 kg |
