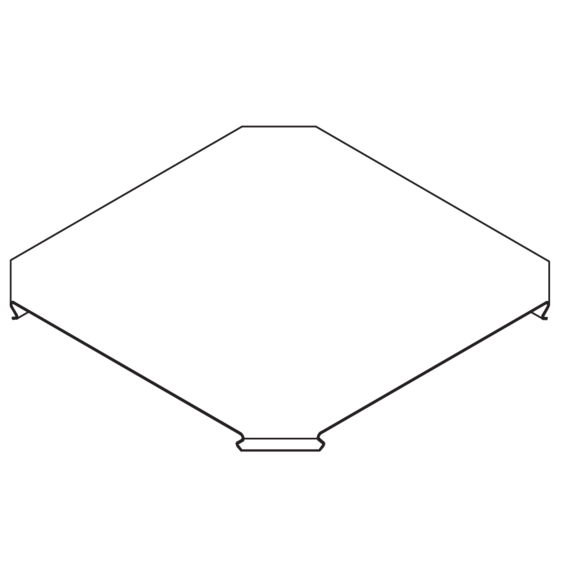

The cable tray crossing covers RKD are suitable for RK cable tray crossings and protect them from dirt and moisture. They snap into place and interlock with the side rails. If the covers are to be used outdoors, additional securing brackets to protect against wind are required. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Protects the cable tray crossing RK from external influences
- Easy assembly: snap the cover into place on the cable tray crossing
Products
steel, continously hot galvanized/Sendzimir process
| Products | B width | W Weight per storage unit | bookmark |
|---|---|---|---|
| RKD 10S | 106 mm | 0,260 kg | |
| RKD 20S | 206 mm | 0,570 kg | |
| RKD 30S | 306 mm | 1,330 kg | |
| RKD 40S | 406 mm | 2,050 kg | |
| RKD 50S | 506 mm | 3,670 kg | |
| RKD 60S | 606 mm | 4,980 kg |
steel, batch/hot-dip galvanized
| Products | B width | W Weight per storage unit | bookmark |
|---|---|---|---|
| RKD 10F | 106 mm | 0,270 kg | |
| RKD 20F | 206 mm | 0,610 kg | |
| RKD 30F | 306 mm | 1,420 kg | |
| RKD 40F | 406 mm | 2,190 kg | |
| RKD 50F | 506 mm | 3,930 kg | |
| RKD 60F | 606 mm | 5,330 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | B width | W Weight per storage unit | bookmark |
|---|---|---|---|
| RKD 10E | 106 mm | 0,270 kg | |
| RKD 20E | 206 mm | 0,610 kg | |
| RKD 30E | 306 mm | 1,330 kg | |
| RKD 40E | 406 mm | 2,070 kg | |
| RKD 50E | 506 mm | 3,700 kg | |
| RKD 60E | 606 mm | 5,000 kg |
