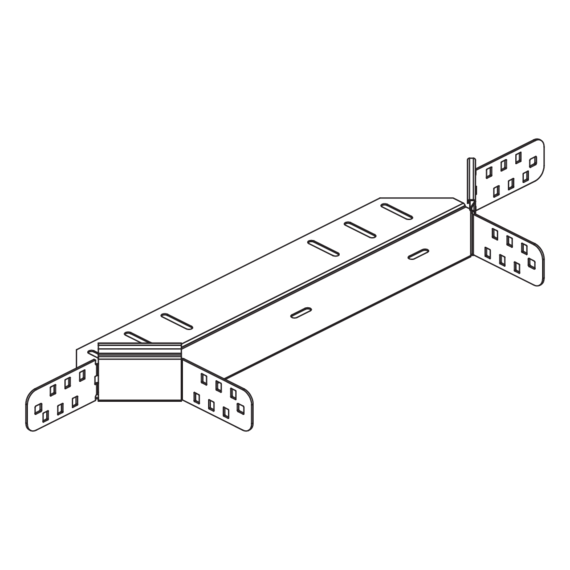

The RAA 60 cable tray attachment branch allows the direction of cable routing to be changed horizontally in the form of a branch. The side rail of the main cable tray is cut out at the point where the connection cable tray will branch off as specified in the installation instructions. The RAA attachment branch is positioned and bolted in place at this point. The VB floor connector and the connection cable tray can then be attached. The RAA 60 cable tray attachment branch is suitable for cable trays with sides 60 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction in the form of a branch
Products

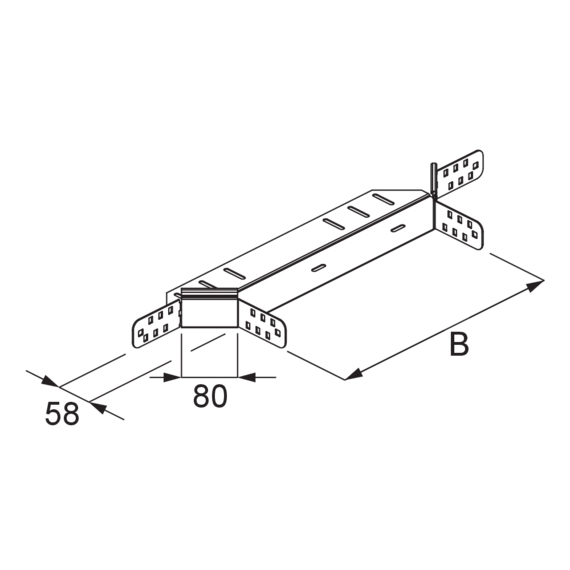

| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RAA 60-10S | 60 mm | 100 mm | 0,724 kg | ||
| RAA 60-20S | 60 mm | 200 mm | 0,852 kg | ||
| RAA 60-30S | 60 mm | 300 mm | 0,984 kg | ||
| RAA 60-40S | 60 mm | 400 mm | 1,120 kg | ||
| RAA 60-50S | 60 mm | 500 mm | 1,246 kg | ||
| RAA 60-60S | 60 mm | 600 mm | 1,382 kg |
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RAA 60-10F | 60 mm | 100 mm | 0,777 kg | ||
| RAA 60-20F | 60 mm | 200 mm | 0,914 kg | ||
| RAA 60-30F | 60 mm | 300 mm | 1,055 kg | ||
| RAA 60-40F | 60 mm | 400 mm | 1,200 kg | ||
| RAA 60-50F | 60 mm | 500 mm | 1,335 kg | ||
| RAA 60-60F | 60 mm | 600 mm | 1,481 kg |
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RAA 60-10E | 60 mm | 100 mm | 0,651 kg | ||
| RAA 60-20E | 60 mm | 200 mm | 0,780 kg | ||
| RAA 60-30E | 60 mm | 300 mm | 0,913 kg | ||
| RAA 60-40E | 60 mm | 400 mm | 1,050 kg | ||
| RAA 60-50E | 60 mm | 500 mm | 1,177 kg | ||
| RAA 60-60E | 60 mm | 600 mm | 1,314 kg |
| Products | H height | B width | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|
| RAA 60-10E4 | 60 mm | 100 mm | 0,660 kg | ||
| RAA 60-20E4 | 60 mm | 200 mm | 0,791 kg | ||
| RAA 60-30E4 | 60 mm | 300 mm | 0,925 kg | ||
| RAA 60-40E4 | 60 mm | 400 mm | 1,064 kg | ||
| RAA 60-50E4 | 60 mm | 500 mm | 1,192 kg | ||
| RAA 60-60E4 | 60 mm | 600 mm | 1,331 kg |
