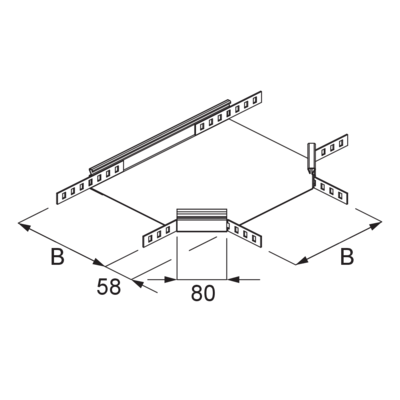

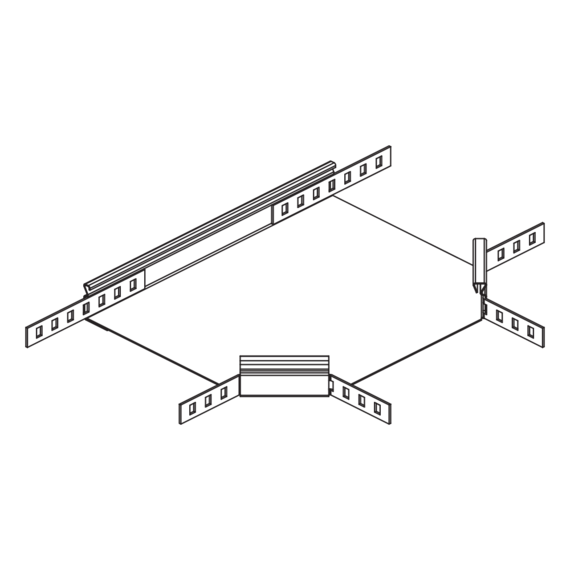

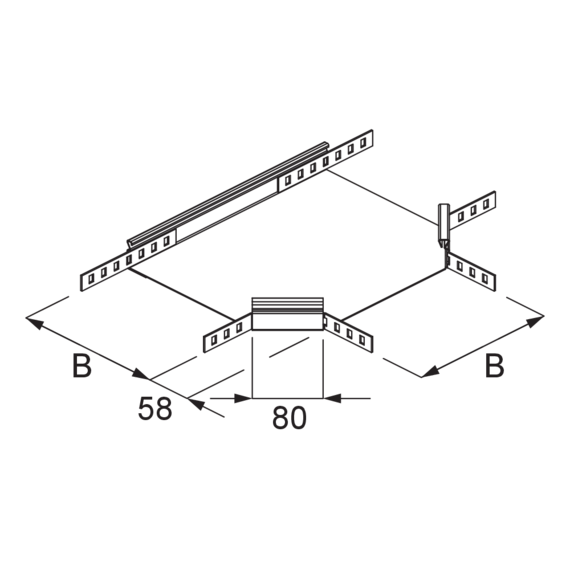

The cable tray branch RA 35 allows the direction of cable routing to be changed horizontally in the form of a branch. It is inserted between two cable trays and enables the connection of another cable tray at right angles. The cable tray branch is suitable for cable trays with sides 35 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Creates horizontal changes of the cable routing direction in the form of a branch
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| RA 35-05S | 35 mm | 50 mm | 164 mm | 0,602 kg | ||
| RA 35-10S | 35 mm | 100 mm | 214 mm | 0,767 kg | ||
| RA 35-20S | 35 mm | 200 mm | 314 mm | 1,287 kg | ||
| RA 35-30S | 35 mm | 300 mm | 414 mm | 2,003 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| RA 35-10F | 35 mm | 100 mm | 214 mm | 0,824 kg | ||
| RA 35-20F | 35 mm | 200 mm | 314 mm | 1,380 kg | ||
| RA 35-30F | 35 mm | 300 mm | 414 mm | 2,146 kg |
